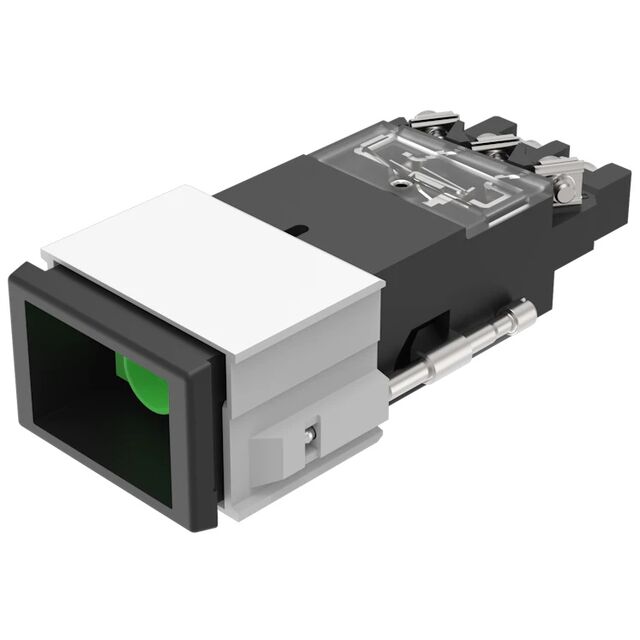

02-611.011
ActiveEAO
SWITCH PB SPDT 10A 400V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
02-611.011
ActiveEAO
SWITCH PB SPDT 10A 400V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 02-611.011 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Rectangular, Button (Not Included) |
| Circuit | SPDT |
| Current Rating (Amps) | 10 A |
| Ingress Protection | IP40 |
| Mechanical Life | 2000000 Cycles |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [x] | 29.2 mm |
| Panel Cutout Dimensions [y] | 21.2 mm |
| Switch Function | On-Mom |
| Termination Style | Screw Terminal |
| Type | Standard |
| Voltage Rating - AC | 400 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 56.58 | |
| 10 | $ 51.55 | |||
| 25 | $ 48.09 | |||
| 50 | $ 46.21 | |||
| 100 | $ 43.06 | |||
| 250 | $ 38.90 | |||
02-611 Series
SWITCH PB SPDT 10A 400V
| Part | Mounting Type | Termination Style | Switch Function | Circuit | Actuator Type | Ingress Protection | Type | Actuator Marking | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Voltage Rating - AC | Mechanical Life |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EAO 02-611.011 | Panel Mount, Front | Screw Terminal | On-Mom | SPDT | Rectangular, Button (Not Included) | IP40 | Standard | No Marking | 29.2 mm | 21.2 mm | 55 °C | -25 °C | 10 A | 400 V | 2000000 Cycles |
Description
General part information
02-611 Series
Pushbutton Switch SPDT Standard Panel Mount, Front
