OCP-PCT114/E

Active

Lumex Opto/Components Inc.

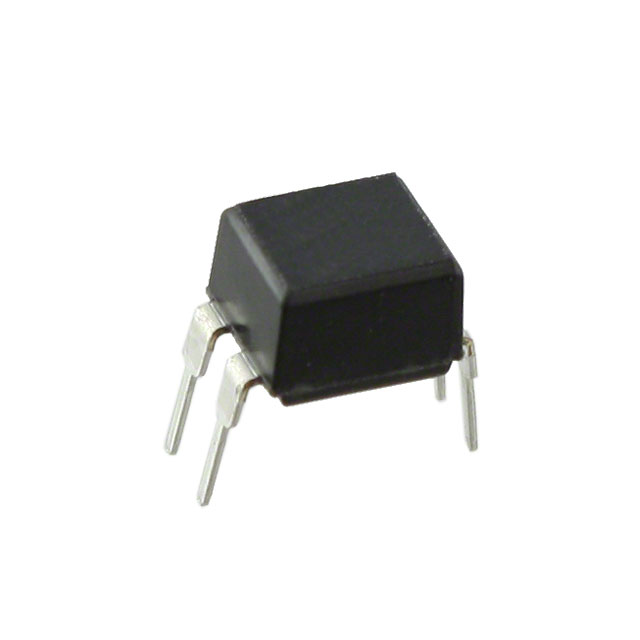

OPTOISOLATR 5KV TRANSISTOR 4-DIP

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

OPTOISOLATR 5KV TRANSISTOR 4-DIP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	OCP-PCT114/E	OCP-PCT114 Series

Current - DC Forward (If) (Max)	50 mA	50 mA
Current - Output / Channel	50 mA	50 mA
Current Transfer Ratio (Max)	600 %	600 %
Current Transfer Ratio (Min) [Min]	60 %	60 %
Input Type	DC	DC
Mounting Type	Through Hole	Surface Mount, Through Hole
Number of Channels	1	1
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Output Type	1.81 mOhm	1.81 mOhm
Package / Case	4-DIP (0.300", 7.62mm)	4-SMD, Gull Wing, 4-DIP (0.300", 7.62mm)
Rise / Fall Time (Typ) [custom]	5 µs	5 µs
Rise / Fall Time (Typ) [custom]	4 µs	4 µs
Supplier Device Package	4-DIP	4-SMD, 4-DIP
Vce Saturation (Max) [Max]	300 mV	300 mV
Voltage - Output (Max) [Max]	60 V	60 V

OPTOISOLATR 5KV TRANSISTOR 4-SMD

Part	Current Transfer Ratio (Max)	Operating Temperature [Max]	Operating Temperature [Min]	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Current - Output / Channel	Voltage - Output (Max) [Max]	Vce Saturation (Max) [Max]	Current - DC Forward (If) (Max)	Output Type	Current Transfer Ratio (Min) [Min]	Supplier Device Package	Mounting Type	Package / Case	Number of Channels	Input Type
Lumex Opto/Components Inc. OCP-PCT114/E-TR	600 %	100 °C	-30 ░C	5 µs	4 µs	50 mA	60 V	300 mV	50 mA	1.81 mOhm	60 %	4-SMD	Surface Mount	4-SMD, Gull Wing	1	DC
Lumex Opto/Components Inc. OCP-PCT114/E	600 %	100 °C	-30 ░C	5 µs	4 µs	50 mA	60 V	300 mV	50 mA	1.81 mOhm	60 %	4-DIP	Through Hole	4-DIP (0.300", 7.62mm)	1	DC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Optoisolator Transistor Output 5000Vrms 1 Channel 4-DIP
