14-572.0360

Active

EAO

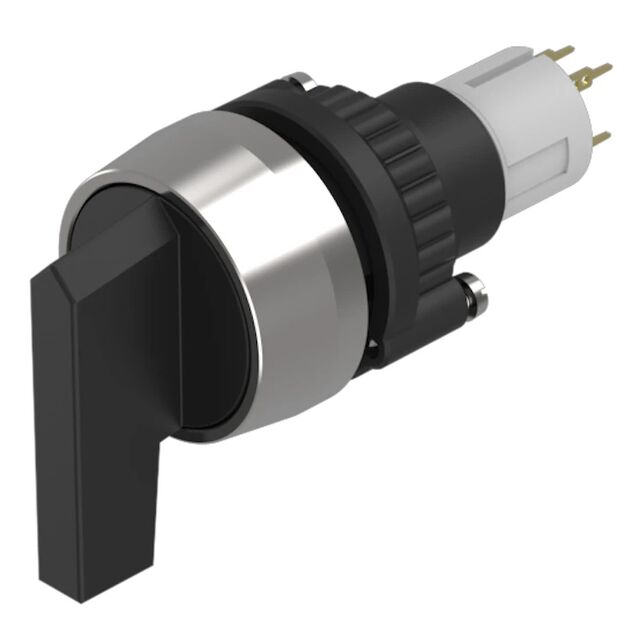

SWITCH SELECT 2P DPST 100MA 42V

Search across all available documentation for this part.

Active

EAO

SWITCH SELECT 2P DPST 100MA 42V

Technical Specifications

Parameters and characteristics for this part

Specification	14-572.0360

Approval Agency	CE, CQC
Circuit	DPST-NO/NC
Current Rating (Amps)	100 mA
Depth Behind Flange	35.5 mm
Features	Long Lever, Bezel - Round
Illumination	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	1000000 Cycles
Number of Positions	2
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	22.3 mm
Switch Function	On-Off, Off-On
Type	Standard
Voltage Rating - AC	42 V
Voltage Rating - DC	42 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

SWITCH SELECT 2P DPST 100MA 42V

Part	Voltage Rating - DC	Depth Behind Flange	Illumination	Panel Cutout Dimensions [diameter]	Mechanical Life	Features	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Voltage Rating - AC	Circuit	Current Rating (Amps)	Type	Approval Agency	Switch Function	Number of Positions
EAO 14-572.0360	42 V	35.5 mm	Non-Illuminated	22.3 mm	1000000 Cycles	Bezel - Round, Long Lever	55 °C	-25 °C	IP67 - Dust Tight, Waterproof	42 V	DPST-NO/NC	100 mA	Standard	CE, CQC	Off-On, On-Off	2

General part information

Selector Switch 2 Position DPST-NO/NC 100mA (AC/DC) 42 V Panel Mount
