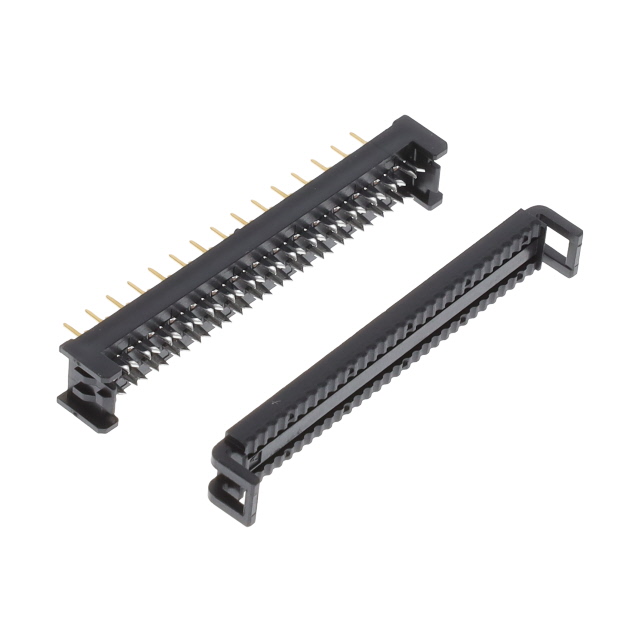

XG2A-3001
ActiveOmron Electronics Inc-EMC Div
CONN DIP HDR IDC 30P 28AWG VERT
Deep-Dive with AI
Search across all available documentation for this part.
XG2A-3001
ActiveOmron Electronics Inc-EMC Div
CONN DIP HDR IDC 30P 28AWG VERT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | XG2A-3001 |
|---|---|
| Board-Side Pitch | 0.1 in |
| Board-Side Pitch | 2.54 mm |
| Cable Pitch | 1.27 mm |
| Cable Pitch | 0.05 in |
| Cable Termination | IDC |
| Color | Black |
| Connector Type | Ribbon Cable, DIP Header |
| Contact Finish | Tin |
| Features | Feed Through |
| Mounting Type | Through Hole |
| Number of Positions | 30 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Row Spacing [x] | 0.1 in |
| Wire Gauge | 28 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.89 | |
| 10 | $ 4.44 | |||
| 25 | $ 4.20 | |||
| 50 | $ 4.11 | |||
| 100 | $ 3.91 | |||
| 250 | $ 3.42 | |||
| 450 | $ 3.32 | |||
| 950 | $ 2.84 | |||
| 2400 | $ 2.64 | |||
Description
General part information
XG2A-3001
30 Position Ribbon Cable, DIP Header Connector Black IDC 28 AWG Through Hole
