LD30W-24

Active

EPtronics, Inc.

CV 24V@313~1250MA, NON-DIMMING

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

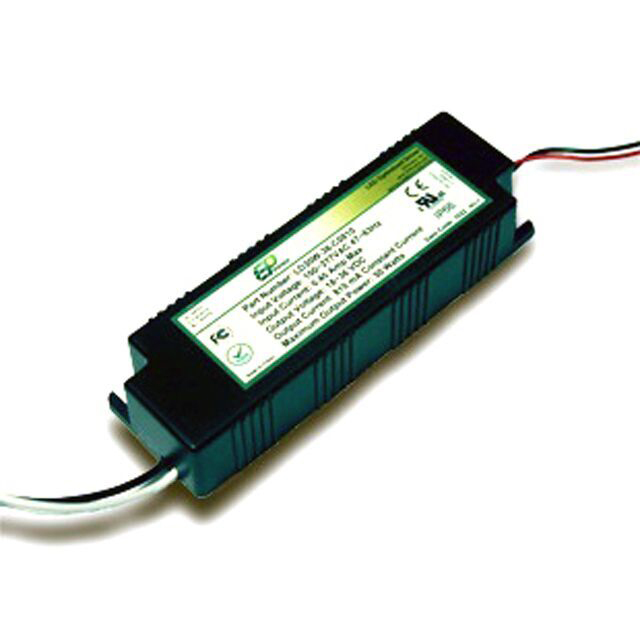

LD30W-24

Active

EPtronics, Inc.

CV 24V@313~1250MA, NON-DIMMING

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 36.24
		5	$ 35.15
		10	$ 34.10
		25	$ 33.07
		50	$ 32.08
		100	$ 31.12

Description

General part information

LD30W Series

1.25A 24V Constant Voltage LED Driver AC DC Converter Topology 1 Output

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	LD30W-24	LD30W Series

Approval Agency	CE, FCC, cURus	CE, FCC, cURus
Current - Output (Max) [Max]	1.25 A	1.25 - 830 mA
Dimming	Non-Dimmable	Non-Dimmable, Analog, PWM
Dimming	-	10 V
Dimming	-	0 V
Efficiency	84 %	83 - 86 %
Features	SCP, OCP, OVP	SCP, OCP, OVP
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	1	1
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Min]	-30 ░C	-40 - -30 °C
Power (Watts)	30 W	30 W
Ratings	IP66	IP66
Size / Dimension [x]	124 mm	124 - 134.9 mm
Size / Dimension [x]	4.88 "	4.88 - 5.31 "
Size / Dimension [y]	42.9 mm	42.9 mm
Size / Dimension [y]	1.69 in	1.69 in
Size / Dimension [z]	24.9 mm	24.9 mm
Size / Dimension [z]	0.98 in	0.98 in
Standard Number	C22.2, UL 8750	C22.2, UL 8750
Termination Style	Wire Leads	Wire Leads
Topology	AC DC Converter	AC DC Converter
Type	Constant Voltage	Constant Current, Constant Voltage
Voltage - Input (Max) [Max]	305 VAC	305 VAC
Voltage - Input (Min) [Min]	90 VAC	90 - 100 VAC
Voltage - Isolation	3750 V	2500 - 3750 V
Voltage - Output	24 V	12 - 36 V
Voltage - Output	-	36 - 85 V
Voltage - Output	-	14 - 42 V
Weight	0.519 lb	0.519 lb
Weight	235.32 g	235.32 g

LD30W Series

33~66V@450MA, 0~10V DIM TO 0%

Part	Weight	Weight	Voltage - Input (Max) [Max]	Ratings	Standard Number	Dimming [Max] [custom]	Dimming [Min] [custom]	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Features	Voltage - Input (Min) [Min]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Type	Current - Output (Max) [Max]	Power (Watts)	Termination Style	Voltage - Isolation	Efficiency	Voltage - Output [Max]	Voltage - Output [Min]	Mounting Type	Number of Outputs	Topology	Dimming	Voltage - Output
EPtronics, Inc. LD30W-66-C0450-RD	0.519 lb	235.32 g	305 VAC	IP66	C22.2, UL 8750	10 V	0 V	CE, cURus, FCC	-40 °C	60 °C	OCP, OVP, SCP	100 VAC	24.9 mm	42.9 mm	1.69 in	124 mm	4.88 "	0.98 in	Constant Current	450 mA	30 W	Wire Leads	2500 V	85 %	66 V	33 V	Chassis Mount	1	AC DC Converter
EPtronics, Inc. LD30W-85-C0350-RD	0.519 lb	235.32 g	305 VAC	IP66	C22.2, UL 8750	10 V	0 V	CE, cURus, FCC	-40 °C	60 °C	OCP, OVP, SCP	100 VAC	24.9 mm	42.9 mm	1.69 in	124 mm	4.88 "	0.98 in	Constant Current	350 mA	30 W	Wire Leads	2500 V	86 %	85 V	42 V	Chassis Mount	1	AC DC Converter
EPtronics, Inc. LD30W-36	0.519 lb	235.32 g	305 VAC	IP66	C22.2, UL 8750			CE, cURus, FCC	-30 ░C	60 °C	OCP, OVP, SCP	90 VAC	24.9 mm	42.9 mm	1.69 in	124 mm	4.88 "	0.98 in	Constant Voltage	830 mA	30 W	Wire Leads	2500 V	84 %			Chassis Mount	1	AC DC Converter	Non-Dimmable	36 V
EPtronics, Inc. LD30W-42-C0700			305 VAC	IP66				CE, cURus, FCC	-30 ░C	60 °C	OCP, OVP, SCP	90 VAC	24.9 mm	42.9 mm	1.69 in	134.9 mm	5.31 "	0.98 in	Constant Current	700 mA	30 W	Wire Leads	3750 V	85 %	42 V	14 V	Chassis Mount	1	AC DC Converter	Analog, PWM
EPtronics, Inc. LD30W-85-C0350			305 VAC	IP66				CE, cURus, FCC	-30 ░C	60 °C	OCP, OVP, SCP	90 VAC	24.9 mm	42.9 mm	1.69 in	134.9 mm	5.31 "	0.98 in	Constant Current	350 mA	30 W	Wire Leads	3750 V	86 %	85 V	28 V	Chassis Mount	1	AC DC Converter	Analog, PWM
EPtronics, Inc. LD30W-24	0.519 lb	235.32 g	305 VAC	IP66	C22.2, UL 8750			CE, cURus, FCC	-30 ░C	60 °C	OCP, OVP, SCP	90 VAC	24.9 mm	42.9 mm	1.69 in	124 mm	4.88 "	0.98 in	Constant Voltage	1.25 A	30 W	Wire Leads	3750 V	84 %			Chassis Mount	1	AC DC Converter	Non-Dimmable	24 V
EPtronics, Inc. LD30W-12	0.519 lb	235.32 g	305 VAC	IP66	C22.2, UL 8750			CE, cURus, FCC	-30 ░C	60 °C	OCP, OVP, SCP	90 VAC	24.9 mm	42.9 mm	1.69 in	124 mm	4.88 "	0.98 in	Constant Voltage	2.5 A	30 W	Wire Leads	3750 V	83 %			Chassis Mount	1	AC DC Converter	Non-Dimmable	12 V
EPtronics, Inc. LD30W-36-C0830-RD	0.519 lb	235.32 g	305 VAC	IP66	C22.2, UL 8750	10 V	0 V	CE, cURus, FCC	-40 °C	60 °C	OCP, OVP, SCP	100 VAC	24.9 mm	42.9 mm	1.69 in	124 mm	4.88 "	0.98 in	Constant Current	830 mA	30 W	Wire Leads	2500 V	84 %	36 V	18 V	Chassis Mount	1	AC DC Converter
EPtronics, Inc. LD30W-42-C0700-RD	0.519 lb	235.32 g	305 VAC	IP66	C22.2, UL 8750	10 V	0 V	CE, cURus, FCC	-40 °C	60 °C	OCP, OVP, SCP	100 VAC	24.9 mm	42.9 mm	1.69 in	124 mm	4.88 "	0.98 in	Constant Current	700 mA	30 W	Wire Leads	2500 V	85 %	42 V	21 V	Chassis Mount	1	AC DC Converter
