Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 1.11 | |
| 10 | $ 1.01 | |||
| 25 | $ 0.95 | |||
| 50 | $ 0.87 | |||
| 100 | $ 0.85 | |||
| 250 | $ 0.84 | |||
| 500 | $ 0.79 | |||
General part information

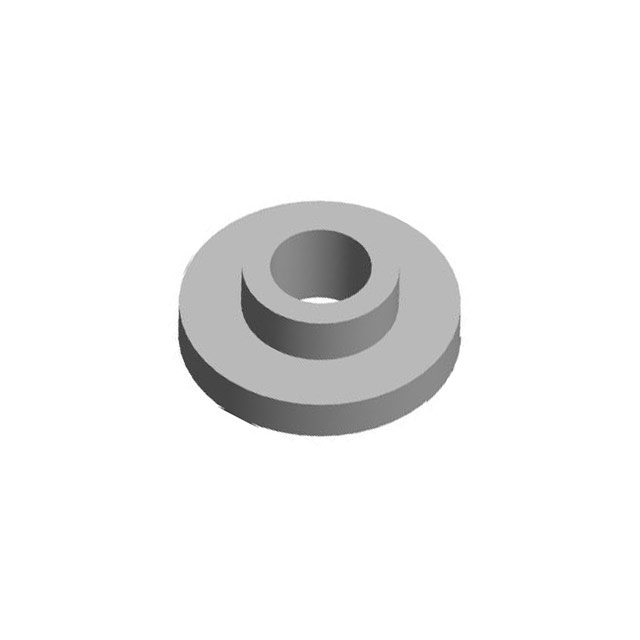

Shoulder Washer 0.259" (6.58mm) Thick Thermoplastic
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | B-532-2 | B-532 Series |
|---|---|---|
| Diameter - Inside [diameter] | 10.67 mm | 10.67 mm |
| Diameter - Inside [diameter] | 0.42 in | 0.42 in |
| Diameter - Outside [diameter] | 0.75 in | 0.75 in |
| Diameter - Outside [diameter] | 0.75 in | 0.75 in |
| Diameter - Outside [diameter] | 19.05 mm | 19.05 mm |
| Length - Below Head | 3.53 mm | 3.53 mm |
| Length - Below Head | 0.139 in | 0.139 in |
| Material | Thermoplastic | Thermoplastic |
| Thickness - Overall | 6.58 mm | 6.58 mm |
| Thickness - Overall | 0.259 " | 0.259 " |
BUSHING 0.42" THERMOPLASTIC
| Part | Thickness - Overall | Thickness - Overall | Length - Below Head | Length - Below Head | Diameter - Outside [diameter] | Diameter - Outside [diameter] | Diameter - Outside [diameter] | Diameter - Inside [diameter] | Diameter - Inside [diameter] | Material |
|---|---|---|---|---|---|---|---|---|---|---|
Aearo Technologies LLC, a 3M company B-532-2 | 6.58 mm | 0.259 " | 3.53 mm | 0.139 in | 0.75 in | 0.75 in | 19.05 mm | 10.67 mm | 0.42 in | Thermoplastic |
Aearo Technologies LLC, a 3M company B-532-V2325 | 6.58 mm | 0.259 " | 3.53 mm | 0.139 in | 0.75 in | 0.75 in | 19.05 mm | 10.67 mm | 0.42 in | Thermoplastic |
Aearo Technologies LLC, a 3M company B-532-V2590 | 6.58 mm | 0.259 " | 3.53 mm | 0.139 in | 0.75 in | 0.75 in | 19.05 mm | 10.67 mm | 0.42 in | Thermoplastic |
Aearo Technologies LLC, a 3M company B-532-V2775 | 6.58 mm | 0.259 " | 3.53 mm | 0.139 in | 0.75 in | 0.75 in | 19.05 mm | 10.67 mm | 0.42 in | Thermoplastic |
Aearo Technologies LLC, a 3M company B-532-3 | 6.58 mm | 0.259 " | 3.53 mm | 0.139 in | 0.75 in | 0.75 in | 19.05 mm | 10.67 mm | 0.42 in | Thermoplastic |
Aearo Technologies LLC, a 3M company B-532-1 | 6.58 mm | 0.259 " | 3.53 mm | 0.139 in | 0.75 in | 0.75 in | 19.05 mm | 10.67 mm | 0.42 in | Thermoplastic |
Aearo Technologies LLC, a 3M company B-532-V2525 | 6.58 mm | 0.259 " | 3.53 mm | 0.139 in | 0.75 in | 0.75 in | 19.05 mm | 10.67 mm | 0.42 in | Thermoplastic |
