87577-4
ActiveTE Connectivity AMP Connectors

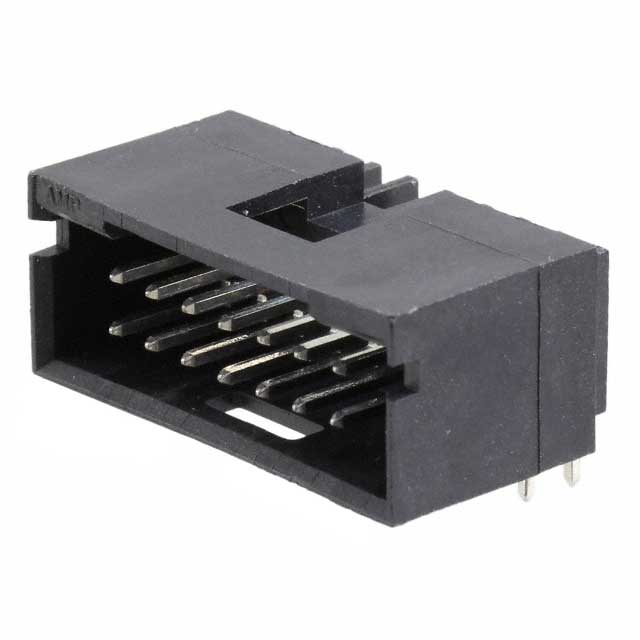

CONN HEADER R/A 14POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
87577-4
ActiveTE Connectivity AMP Connectors
CONN HEADER R/A 14POS 2.54MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 87577-4 | 87577 Series |
|---|---|---|
| Connector Type | Header | Header |
| Contact Finish - Mating | Tin-Lead | Tin-Lead |
| Contact Finish - Post | Tin-Lead | Tin-Lead, Tin |
| Contact Finish Thickness - Mating | 2.54 çm | 2.54 çm |
| Contact Finish Thickness - Mating | 100 çin | 100 çin |
| Contact Finish Thickness - Post | 2.54 µm | 2.54 µm |
| Contact Finish Thickness - Post | 100 µin | 100 µin |
| Contact Length - Mating [x] | 0.318 " | 0.318 " |
| Contact Length - Mating [x] | 8.08 mm | 8.08 mm |
| Contact Length - Post [x] | 0.135 in | 0.135 in |
| Contact Length - Post [x] | 3.43 mm | 3.43 mm |
| Contact Material | Phosphor Bronze | Phosphor Bronze |
| Contact Shape | Square | Square |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | 3 A | 3 A |
| Fastening Type | Detent Lock | Detent Lock |
| Insulation Color | Black | Black |
| Insulation Height | 0.4 in | 0.4 in |
| Insulation Height | 10.16 mm | 10.16 mm |
| Insulation Material | Thermoplastic | Thermoplastic |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle |
| Number of Positions | 14 | 10 - 14 |
| Number of Positions Loaded | All | All |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Pitch - Mating | 0.1 in | 0.1 in |
| Pitch - Mating | 2.54 mm | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in | 0.1 in |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Style | Board to Board, Cable | Board to Board, Cable |
| Termination | Solder | Solder |
87577 Series
CONN HEADER R/A 10POS 2.54MM
| Part | Pitch - Mating | Pitch - Mating | Current Rating (Amps) | Mounting Type | Contact Finish - Post | Insulation Height | Insulation Height | Contact Length - Mating [x] | Contact Length - Mating [x] | Number of Positions Loaded | Shrouding | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Finish - Mating | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Fastening Type | Number of Positions | Contact Material | Contact Shape | Insulation Color | Contact Length - Post [x] | Contact Length - Post [x] | Style | Insulation Material | Number of Rows | Connector Type | Material Flammability Rating | Termination | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 87577-2 | 0.1 in | 2.54 mm | 3 A | Through Hole, Right Angle | Tin-Lead | 0.4 in | 10.16 mm | 0.318 " | 8.08 mm | All | Shrouded - 4 Wall | -65 ░C | 105 ░C | 2.54 µm | 100 µin | Tin-Lead | 2.54 mm | 0.1 in | 2.54 çm | 100 çin | Detent Lock | 10 | Phosphor Bronze | Square | Black | 0.135 in | 3.43 mm | Board to Board, Cable | Thermoplastic | 2 | Header | UL94 V-0 | Solder | Male Pin |
TE Connectivity AMP Connectors 6-87577-3 | 0.1 in | 2.54 mm | 3 A | Through Hole, Right Angle | Tin | 0.4 in | 10.16 mm | 0.318 " | 8.08 mm | All | Shrouded - 4 Wall | -65 ░C | 105 ░C | 2.54 µm | 100 µin | 2.54 mm | 0.1 in | 2.54 çm | 100 çin | Detent Lock | Phosphor Bronze | Square | Black | 0.135 in | 3.43 mm | Board to Board, Cable | Thermoplastic | 2 | Header | UL94 V-0 | Solder | Male Pin | ||
TE Connectivity AMP Connectors 5-87577-4 | 0.1 in | 2.54 mm | 3 A | Through Hole, Right Angle | Tin | 0.4 in | 10.16 mm | 0.318 " | 8.08 mm | All | Shrouded - 4 Wall | -65 ░C | 105 ░C | 2.54 µm | 100 µin | 2.54 mm | 0.1 in | 2.54 çm | 100 çin | Detent Lock | 14 | Phosphor Bronze | Square | Black | 0.135 in | 3.43 mm | Board to Board, Cable | Thermoplastic | 2 | Header | UL94 V-0 | Solder | Male Pin | |
TE Connectivity AMP Connectors 87577-4 | 0.1 in | 2.54 mm | 3 A | Through Hole, Right Angle | Tin-Lead | 0.4 in | 10.16 mm | 0.318 " | 8.08 mm | All | Shrouded - 4 Wall | -65 ░C | 105 ░C | 2.54 µm | 100 µin | Tin-Lead | 2.54 mm | 0.1 in | 2.54 çm | 100 çin | Detent Lock | 14 | Phosphor Bronze | Square | Black | 0.135 in | 3.43 mm | Board to Board, Cable | Thermoplastic | 2 | Header | UL94 V-0 | Solder | Male Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
87577 Series
Connector Header Through Hole, Right Angle 14 position 0.100" (2.54mm)
