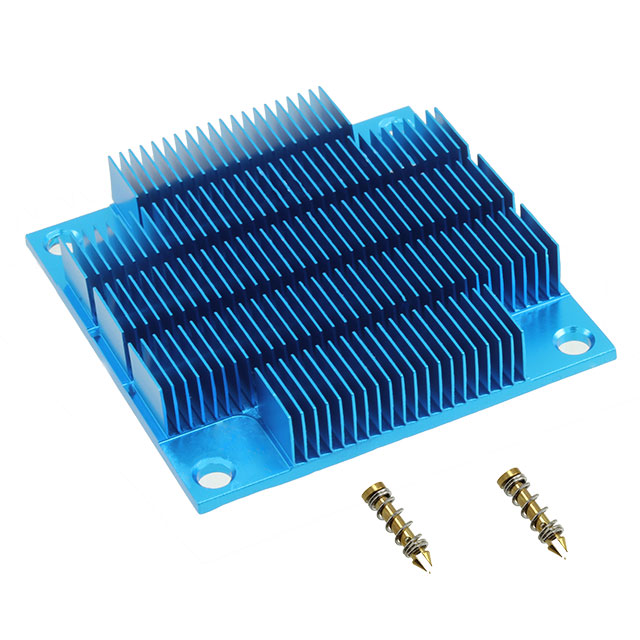

ATS-02A-107-C2-R1

Active

Advanced Thermal Solutions Inc.

HEATSINK 50.00MM X 50.00MM ALUM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ATS-02A-107-C2-R1

Active

Advanced Thermal Solutions Inc.

HEATSINK 50.00MM X 50.00MM ALUM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ATS-02A-107-C2-R1	ATS-02A Series

Attachment Method	Push Pin	Push Pin
Fin Height	0.374 in	0.23 - 1.378 "
Fin Height	9.5 mm	5.84 - 35 mm
Fin Height	-	0.394 - 1.181 in
Fin Height	-	10 - 30 mm
Length	-	25 - 70 mm
Length	-	0.984 - 2.756 "
Length [x]	1.969 in	1.181 - 2.362 in
Length [x]	50 mm	30 - 60 mm
Material	Aluminum	Aluminum
Material Finish	Blue Anodized	Blue Anodized
Package Cooled	ASIC, BGA, LGA, CPU	ASIC, BGA, LGA, CPU
Shape	Square, Fins	Square, Fins, Rectangular, Fins
Thermal Resistance @ Forced Air Flow	27.93 °C/W	2.17 - 100 LFM
Type	Top Mount	Top Mount
Width	-	0.984 - 2.362 in
Width	-	40 - 60 mm
Width	-	25 - 57.6 mm
Width	-	1.181 - 2.267 in
Width [y]	50 mm	50 - 70 mm
Width [y]	1.969 in	1.45 - 2.756 in

ATS-02A Series

HEATSINK 40X40X30MM L-TAB T412

...

Part	Thermal Resistance @ Forced Air Flow	Attachment Method	Material	Type	Material Finish	Shape	Package Cooled	Fin Height [z]	Fin Height [z]	Width [x]	Width [x]	Width	Width	Fin Height	Fin Height	Length [x]	Length [x]	Width [y]	Width [y]	Length	Length
Advanced Thermal Solutions Inc. ATS-02A-65-C3-R0	7.4 °C/W, 100 LFM	Push Pin	Aluminum	Top Mount	Blue Anodized	Fins, Square	ASIC, BGA, CPU, LGA	1.181 in	30 mm	1.575 in	40 mm
Advanced Thermal Solutions Inc. ATS-02A-170-C1-R0	10.02 °C/W, 100 LFM	Push Pin	Aluminum	Top Mount	Blue Anodized	Fins, Square	ASIC, BGA, CPU, LGA					30 mm	1.181 in	0.59 "	15 mm	30 mm	1.181 in
Advanced Thermal Solutions Inc. ATS-02A-145-C3-R0	4.91 °C/W	Push Pin	Aluminum	Top Mount	Blue Anodized	Fins, Square	ASIC, BGA, CPU, LGA	1.181 in	30 mm			30 mm	1.181 in			30 mm	1.181 in
Advanced Thermal Solutions Inc. ATS-02A-92-C2-R0	16.48 °C/W, 100 LFM	Push Pin	Aluminum	Top Mount	Blue Anodized	Fins, Square	ASIC, BGA, CPU, LGA			1.575 in	40 mm			0.59 "	15 mm
Advanced Thermal Solutions Inc. ATS-02A-57-C3-R0	13.3 °C/W, 100 LFM	Push Pin	Aluminum	Top Mount	Blue Anodized	Fins, Square	ASIC, BGA, CPU, LGA	0.79 in	20 mm	1.378 in		35 mm				35 mm	1.378 in
Advanced Thermal Solutions Inc. ATS-02A-107-C1-R1	27.91 °C/W	Push Pin	Aluminum	Top Mount	Blue Anodized	Fins, Square	ASIC, BGA, CPU, LGA							0.374 in	9.5 mm	50 mm	1.969 in	50 mm	1.969 in
Advanced Thermal Solutions Inc. ATS-02A-180-C2-R0	3.32 °C/W	Push Pin	Aluminum	Top Mount	Blue Anodized	Fins, Square	ASIC, BGA, CPU, LGA			1.378 in		35 mm		1.378 in	35 mm	35 mm	1.378 in
Advanced Thermal Solutions Inc. ATS-02A-192-C1-R0	2.33 °C/W, 100 LFM	Push Pin	Aluminum	Top Mount	Blue Anodized	Fins, Square	ASIC, BGA, CPU, LGA			1.772 in		45 mm		1.378 in	35 mm		1.772 "			45 mm
Advanced Thermal Solutions Inc. ATS-02A-15-C2-R0	7.44 °C/W, 100 LFM	Push Pin	Aluminum	Top Mount	Blue Anodized	Fins, Square	ASIC, BGA, CPU, LGA							0.984 in	25 mm	50 mm	1.969 in	50 mm	1.969 in
Advanced Thermal Solutions Inc. ATS-02A-40-C1-R0	14.55 °C/W	Push Pin	Aluminum	Top Mount	Blue Anodized	Rectangular, Fins	ASIC, BGA, CPU, LGA							0.45 in	11.43 mm			60.96 mm	2.4 in	57.9 mm	2.28 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 7.55
		10	$ 6.68
		25	$ 6.36
		50	$ 6.13
		100	$ 5.91
		250	$ 5.63
		450	$ 5.46
		950	$ 5.24

Description

General part information

ATS-02A Series

Heat Sink Assorted (BGA, LGA, CPU, ASIC...) Aluminum Top Mount

Documents

Technical documentation and resources
