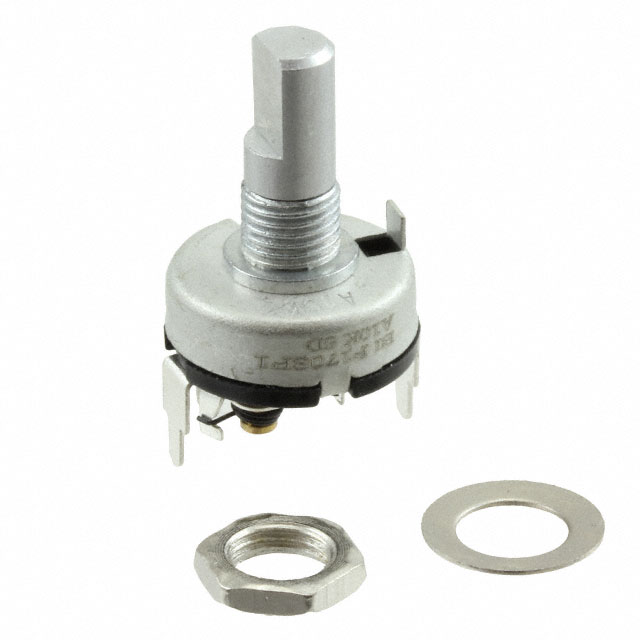

P170SP1-FC15AR10K
ActiveTT Electronics/BI
POT 10K OHM 1/20W PLASTIC LOG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
P170SP1-FC15AR10K
ActiveTT Electronics/BI
POT 10K OHM 1/20W PLASTIC LOG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | P170SP1-FC15AR10K | P170S Series |
|---|---|---|
| Actuator Diameter [diameter] | 0.236 in | 0.236 in |
| Actuator Diameter [diameter] | 6 mm | 6 mm |
| Actuator Length | 15 mm | 15 mm |
| Actuator Length | - | 10 mm |
| Actuator Length | - | 0.394 in |
| Actuator Length | - | 20 mm |
| Actuator Length [z] | 0.591 in | 0.591 - 0.787 in |
| Actuator Type | Flatted | Flatted, Knurled and Slotted, Slotted |
| Adjustment Type | Top Adjustment | Top Adjustment, User Defined, Side Adjustment, Rear Adjustment |
| Built in Switch | Rotary, SPST | Rotary, SPST |
| Bushing Thread | 0.75 | 0.75 |
| Bushing Thread | M7 | M7 |
| Number of Gangs | 1 | 1 |
| Number of Turns | 1 | 1 |
| Power (Watts) | 0.05 W | 0.05 - 0.1 W |
| Power (Watts) | 50 mW | 0.1 - 50 mW |
| Resistance (Ohms) | 10k | 10k |
| Resistance (Ohms) | - | 1 - 500 kOhms |
| Resistive Material | Conductive Plastic | Conductive Plastic |
| Rotation | 260 ° | 260 ° |
| Size - Body | Round | Round |
| Size - Body [diameter] | 17 mm | 17 mm |
| Size - Body [diameter] | 0.669 in | 0.669 in |
| Taper | Logarithmic | Logarithmic, Linear |
| Termination Style | PC Pins | PC Pins, Solder Lug |
| Tolerance | 20 % | 20 % |
P170S Series
POT 10K OHM 1/20W PLASTIC LOG
| Part | Adjustment Type | Built in Switch | Termination Style | Number of Gangs | Size - Body [diameter] | Size - Body | Size - Body [diameter] | Taper | Resistance (Ohms) | Actuator Diameter [diameter] | Actuator Diameter [diameter] | Actuator Length [z] | Actuator Length | Actuator Type | Tolerance | Number of Turns | Rotation | Bushing Thread | Bushing Thread | Resistive Material | Power (Watts) | Power (Watts) | Actuator Length [x] | Actuator Length [x] | Resistance (Ohms) | Actuator Length [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TT Electronics/BI P170SP1-FC15AR10K | Top Adjustment | Rotary, SPST | PC Pins | 1 | 17 mm | Round | 0.669 in | Logarithmic | 10k | 0.236 in | 6 mm | 0.591 in | 15 mm | Flatted | 20 % | 1 | 260 ° | 0.75 | M7 | Conductive Plastic | 0.05 W | 50 mW | ||||
TT Electronics/BI P170SP1-QC15BR10K | Top Adjustment | Rotary, SPST | PC Pins | 1 | 17 mm | Round | 0.669 in | Linear | 10k | 0.236 in | 6 mm | 0.591 in | 15 mm | Knurled and Slotted | 20 % | 1 | 260 ° | 0.75 | M7 | Conductive Plastic | 0.1 W | 0.1 W | ||||
TT Electronics/BI P170S-EA10BR500K | User Defined | Rotary, SPST | Solder Lug | 1 | 17 mm | Round | 0.669 in | Linear | 0.236 in | 6 mm | Slotted | 20 % | 1 | 260 ° | 0.75 | M7 | Conductive Plastic | 0.1 W | 0.1 W | 10 mm | 0.394 in | 500 kOhms | ||||
TT Electronics/BI P170SP1-EA15BR100K | Top Adjustment | Rotary, SPST | PC Pins | 1 | 17 mm | Round | 0.669 in | Linear | 0.236 in | 6 mm | 0.591 in | 15 mm | Slotted | 20 % | 1 | 260 ° | 0.75 | M7 | Conductive Plastic | 0.1 W | 0.1 W | 100 kOhms | ||||
TT Electronics/BI P170S2-FC20BR100K | Side Adjustment | Rotary, SPST | PC Pins | 1 | 17 mm | Round | 0.669 in | Linear | 0.236 in | 6 mm | 0.787 in | Flatted | 20 % | 1 | 260 ° | 0.75 | M7 | Conductive Plastic | 0.1 W | 0.1 W | 100 kOhms | 20 mm | ||||
TT Electronics/BI P170SP1-FC15BR5K | Top Adjustment | Rotary, SPST | PC Pins | 1 | 17 mm | Round | 0.669 in | Linear | 0.236 in | 6 mm | 0.591 in | 15 mm | Flatted | 20 % | 1 | 260 ° | 0.75 | M7 | Conductive Plastic | 0.1 W | 0.1 W | 5 kOhms | ||||
TT Electronics/BI P170SPD-FC15BR10K | Rear Adjustment | Rotary, SPST | PC Pins | 1 | 17 mm | Round | 0.669 in | Linear | 10k | 0.236 in | 6 mm | 0.591 in | 15 mm | Flatted | 20 % | 1 | 260 ° | 0.75 | M7 | Conductive Plastic | 0.1 W | 0.1 W | ||||
TT Electronics/BI P170SP1-QC20BR1K | Top Adjustment | Rotary, SPST | PC Pins | 1 | 17 mm | Round | 0.669 in | Linear | 0.236 in | 6 mm | 0.787 in | Knurled and Slotted | 20 % | 1 | 260 ° | 0.75 | M7 | Conductive Plastic | 0.1 W | 0.1 W | 1 kOhms | 20 mm | ||||
TT Electronics/BI P170SPD-QC15BR10K | Rear Adjustment | Rotary, SPST | PC Pins | 1 | 17 mm | Round | 0.669 in | Linear | 10k | 0.236 in | 6 mm | 0.591 in | 15 mm | Knurled and Slotted | 20 % | 1 | 260 ° | 0.75 | M7 | Conductive Plastic | 0.1 W | 0.1 W | ||||
TT Electronics/BI P170SP1-FC15BR10K | Top Adjustment | Rotary, SPST | PC Pins | 1 | 17 mm | Round | 0.669 in | Linear | 10k | 0.236 in | 6 mm | 0.591 in | 15 mm | Flatted | 20 % | 1 | 260 ° | 0.75 | M7 | Conductive Plastic | 0.1 W | 0.1 W |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 3.23 | |
| 10 | $ 2.84 | |||
| 25 | $ 2.55 | |||
| 40 | $ 2.45 | |||
| 80 | $ 2.35 | |||
| 230 | $ 2.25 | |||
| 440 | $ 1.86 | |||
| 1210 | $ 1.76 | |||
| 6050 | $ 1.47 | |||
Description
General part information
P170S Series
10k Ohm 1 Gang Logarithmic Panel Mount Potentiometer 1.0 Turns Conductive Plastic 0.05W, 1/20W PC Pins
