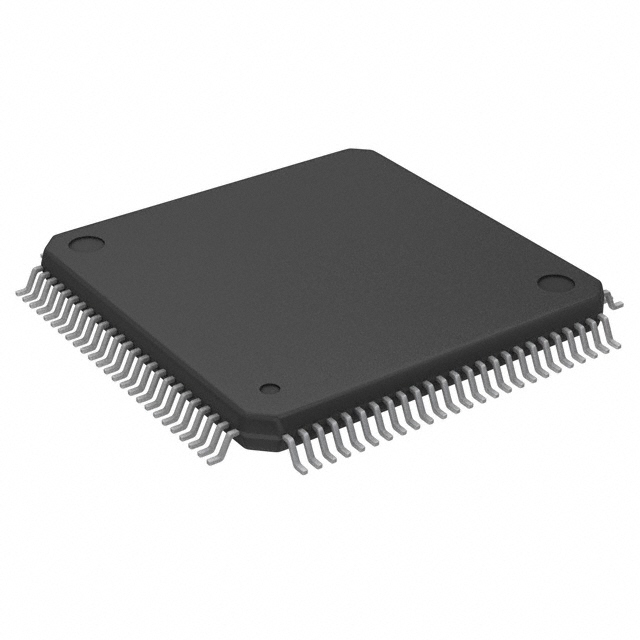

EZ80190AZ050SG

Obsolete

Zilog

IC MPU EZ80 50MHZ 100VQFP

Search across all available documentation for this part.

Obsolete

Zilog

IC MPU EZ80 50MHZ 100VQFP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EZ80190AZ050SG	EZ80190 Series

Additional Interfaces	I2C, UART, SPI	I2C, UART, SPI
Core Processor	eZ80	eZ80
Graphics Acceleration	False	False
Mounting Type	Surface Mount	Surface Mount
Number of Cores/Bus Width [custom]	8 Bit	8 Bit
Number of Cores/Bus Width [custom]	1 Core	1 Core
Operating Temperature [Max]	70 °C	70 - 105 °C
Operating Temperature [Min]	0 °C	-40 - 0 °C
Package / Case	100-LQFP	100-LQFP
Speed	50 MHz	50 MHz
Supplier Device Package	100-VQFP (14x14)	100-VQFP (14x14)
Voltage - I/O	3.3 V	3.3 V

IC MPU EZ80 50MHZ 100VQFP

Part	Operating Temperature [Max]	Operating Temperature [Min]	Speed	Supplier Device Package	Number of Cores/Bus Width [custom]	Number of Cores/Bus Width [custom]	Additional Interfaces	Package / Case	Voltage - I/O	Mounting Type	Core Processor
Zilog EZ80190AZ050SG	70 °C	0 °C	50 MHz	100-VQFP (14x14)	8 Bit	1 Core	I2C, SPI, UART	100-LQFP	3.3 V	Surface Mount	eZ80
Zilog EZ80190AZ050EC	105 °C	-40 °C	50 MHz	100-VQFP (14x14)	8 Bit	1 Core	I2C, SPI, UART	100-LQFP	3.3 V	Surface Mount	eZ80
Zilog EZ80190AZ050SC	70 °C	0 °C	50 MHz	100-VQFP (14x14)	8 Bit	1 Core	I2C, SPI, UART	100-LQFP	3.3 V	Surface Mount	eZ80
Zilog EZ80190AZ050EG	105 °C	-40 °C	50 MHz	100-VQFP (14x14)	8 Bit	1 Core	I2C, SPI, UART	100-LQFP	3.3 V	Surface Mount	eZ80

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

eZ80 Microprocessor IC eZ80® Acclaim!® 1 Core, 8-Bit 50MHz 100-VQFP (14x14)
