8306 0601000

Active

Belden Inc.

MULTI-PAIR 12COND 22AWG

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 12COND 22AWG

Technical Specifications

Parameters and characteristics for this part

Specification	8306 0601000

Cable Type	Multi-Pair
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	0.348 in
Jacket (Insulation) Diameter [diameter]	8.84 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.889 mm
Jacket (Insulation) Thickness	0.035 in
Jacket Color	Chrome
Length	1000 ft
Length	304.8 m
Number of Conductors	12
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style 2464
Shield Coverage	100 %, 65 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Usage	Computer
Voltage	300 V
Wire Gauge	22 AWG

Part	Conductor Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Material	Usage	Shield Material	Shield Type	Jacket Color	Cable Type	Wire Gauge	Voltage	Shield Coverage	Ratings	Number of Conductors	Conductor Strand [custom]	Conductor Strand [custom]	Length [x]	Length [x]	Length	Length
Belden Inc. 8306 0605000	Poly-Vinyl Chloride (PVC)	-30 ░C	80 C	0.889 mm	0.035 in	Poly-Vinyl Chloride (PVC)	0.348 in	8.84 mm	Copper Tinned	Computer	Aluminum Copper Tinned	Braid Foil	Chrome	Multi-Pair	22 AWG	300 V	65 % 100 %	UL Style 2464	12	7	30 AWG
Belden Inc. 8306 060500	Poly-Vinyl Chloride (PVC)	-30 ░C	80 C	0.889 mm	0.035 in	Poly-Vinyl Chloride (PVC)	0.348 in	8.84 mm	Copper Tinned	Computer	Aluminum Copper Tinned	Braid Foil	Chrome	Multi-Pair	22 AWG	300 V	65 % 100 %	UL Style 2464	12	7	30 AWG	500 '	152.4 m
Belden Inc. 8306 060100	Poly-Vinyl Chloride (PVC)	-30 ░C	80 C	0.889 mm	0.035 in	Poly-Vinyl Chloride (PVC)	0.348 in	8.84 mm	Copper Tinned	Computer	Aluminum Copper Tinned	Braid Foil	Chrome	Multi-Pair	22 AWG		65 % 100 %	UL Style 2464	12	7	30 AWG	100 ft	30.5 m
Belden Inc. 8306 0601000	Poly-Vinyl Chloride (PVC)	-30 ░C	80 C	0.889 mm	0.035 in	Poly-Vinyl Chloride (PVC)	0.348 in	8.84 mm	Copper Tinned	Computer	Aluminum Copper Tinned	Braid Foil	Chrome	Multi-Pair	22 AWG	300 V	65 % 100 %	UL Style 2464	12	7	30 AWG			1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 5.86

General part information

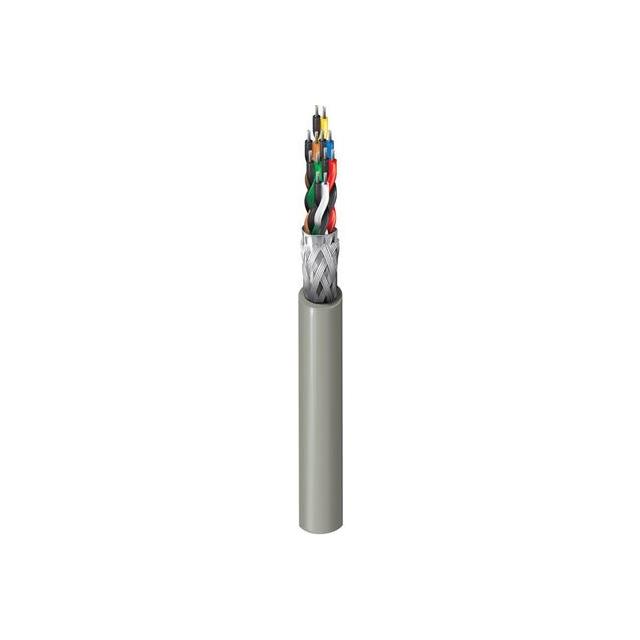

12 (6 Pair Twisted) Conductor Multi-Pair Cable Chrome 22 AWG Foil, Braid 1000.0' (304.8m)
