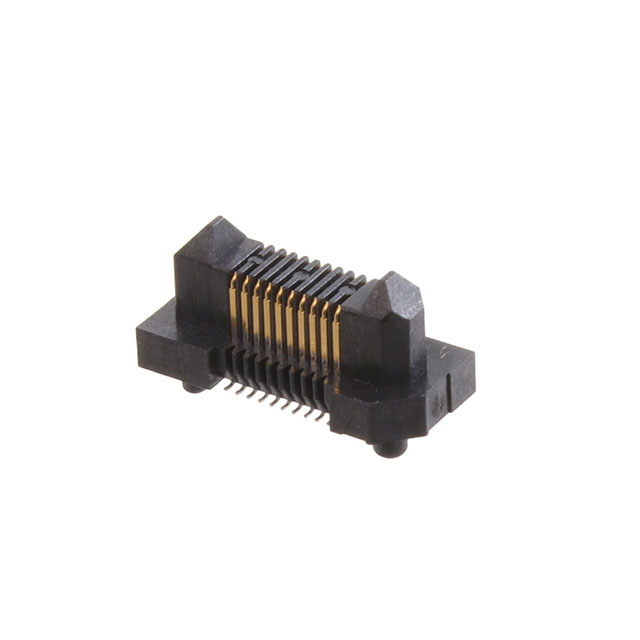

ERM5-010-05.0-S-DV-K-TR

Active

Samtec Inc.

CONN HDR 20POS SMD GOLD

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HDR 20POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	ERM5-010-05.0-S-DV-K-TR

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Pick and Place, Board Guide
Height Above Board	0.309 in
Height Above Board	7.85 mm
Mated Stacking Heights	10 mm, 12 mm
Mounting Type	Surface Mount
Number of Positions	20
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

Part	Mounting Type	Pitch [x]	Pitch [x]	Mated Stacking Heights	Contact Finish	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Features	Height Above Board	Height Above Board	Number of Positions
Samtec Inc. ERM5-010-02.0-S-DV-WT-TR	Surface Mount	0.5 mm	0.02 in	7 mm 9 mm	Gold	Header Outer Shroud Contacts	0.76 Ám	30 Áin	2	Board Guide Solder Retention	4.85 mm	0.191 in	20
Samtec Inc. ERM5-010-04.0-L-DV-K-TR	Surface Mount	0.5 mm	0.02 in	9 mm 11 mm	Gold	Header Outer Shroud Contacts	0.25 Ám	10 Áin	2	Board Guide Pick and Place	6.85 mm	0.27 in	20
Samtec Inc. ERM5-010-05.0-L-DV-TR	Surface Mount	0.5 mm	0.02 in	10 mm 12 mm	Gold	Header Outer Shroud Contacts	0.25 Ám	10 Áin	2	Board Guide	7.85 mm	0.309 in	20
Samtec Inc. ERM5-010-05.0-S-DV-WT-TR	Surface Mount	0.5 mm	0.02 in	10 mm 12 mm	Gold	Header Outer Shroud Contacts	0.76 Ám	30 Áin	2	Board Guide Solder Retention	7.85 mm	0.309 in	20
Samtec Inc. ERM5-010-04.0-L-DV-TR	Surface Mount	0.5 mm	0.02 in	9 mm 11 mm	Gold	Header Outer Shroud Contacts	0.25 Ám	10 Áin	2	Board Guide	6.85 mm	0.27 in	20
Samtec Inc. ERM5-010-05.0-S-DV-K-TR	Surface Mount	0.5 mm	0.02 in	10 mm 12 mm	Gold	Header Outer Shroud Contacts	0.76 Ám	30 Áin	2	Board Guide Pick and Place	7.85 mm	0.309 in	20
Samtec Inc. ERM5-010-05.0-L-DV-K-TR	Surface Mount	0.5 mm	0.02 in	10 mm 12 mm	Gold	Header Outer Shroud Contacts	0.25 Ám	10 Áin	2	Board Guide Pick and Place	7.85 mm	0.309 in	20

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	325	$ 3.61

General part information

20 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
