LCAD30016
ActivePasternack

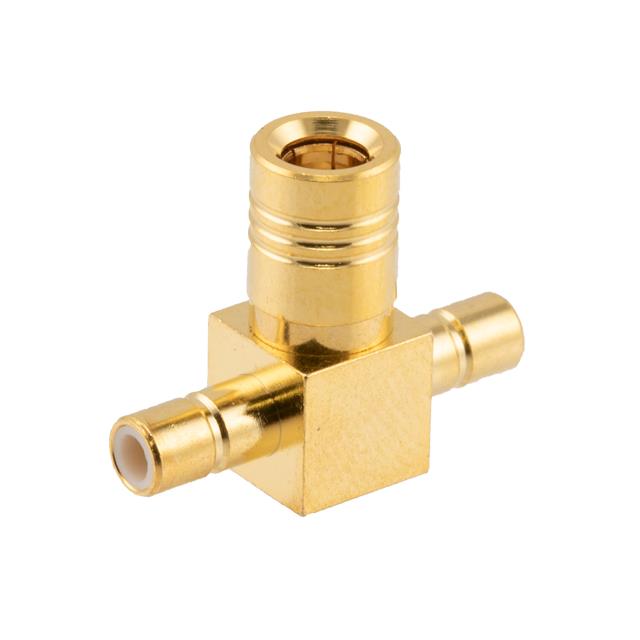

COAX ADAPT SMB TO SMB, DUAL
LCAD30016
ActivePasternack
COAX ADAPT SMB TO SMB, DUAL
Description
General part information
LCAD30016
Adapter Coaxial Connector SMB Jack, Female Socket To SMB Jack, Male Pin (2) 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | LCAD30016 |
|---|---|
| Adapter Series | Dual, SMB to SMB |
| Adapter Type | Plug to Jack |
| Body Finish | Gold |
| Body Material | Brass |
| Center Contact Material | Phosphor Bronze |
| Center Contact Plating | Gold |
| Center Gender | Male, Female |
| Conversion Type | Same Series |
| Convert From (Adapter End) | Female Socket, SMB Jack |
| Convert To (Adapter End) | SMB Jack, Male Pin |
| Convert To (Adapter End) Count | 2 count |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Snap-On |
| Frequency - Max | 100 Gbps |
| Impedance | 50 Ohm |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature (Max) | 165 °C |
| Operating Temperature (Min) | -65 °C |
| Style | T-Shape |
