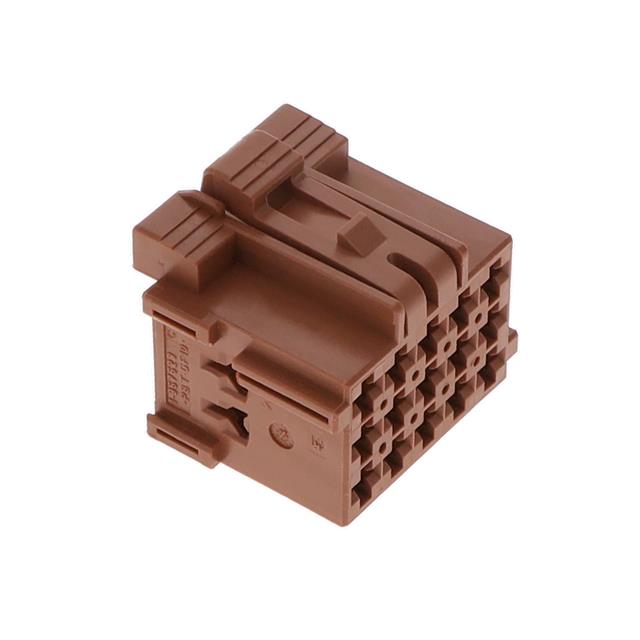

1-967623-5
ActiveTE Connectivity AMP Connectors
JUN-POW-TIM GEH 15P
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1-967623-5
ActiveTE Connectivity AMP Connectors
JUN-POW-TIM GEH 15P
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1-967623-5 | 967623 Series |
|---|---|---|
| Color | Brown | Yellow, Brown, Blue |
| Connector Type | Receptacle | Receptacle |
| Contact Termination | Crimp | Crimp |
| Contact Type | Female Socket | Female Socket |
| Fastening Type | Latch Holder | Latch Lock, Latch Holder |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | - | Contacts Not Included |
| Number of Positions | 15 | 15 |
| Number of Rows | 3 | 3 |
| Operating Temperature [Max] | 100 °C | 100 °C |
| Operating Temperature [Min] | -30 ░C | -30 ░C |
| Pitch [x] | 5 mm | 5 mm |
| Pitch [x] | 0.197 in | 0.197 in |
| Row Spacing | 0.217 in | 0.217 in |
| Row Spacing | 5.5 mm | 5.5 - 5.51 mm |
| Row Spacing | - | 0.217 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.20 | |
| 10 | $ 1.01 | |||
| 25 | $ 0.97 | |||
| 50 | $ 0.95 | |||
| 100 | $ 0.91 | |||
| 250 | $ 0.83 | |||
| 800 | $ 0.72 | |||
| 1600 | $ 0.62 | |||
| 3200 | $ 0.60 | |||
967623 Series
JUN-POW-TIM GEH 15P
| Part | Row Spacing | Row Spacing | Operating Temperature [Max] | Operating Temperature [Min] | Color | Fastening Type | Contact Type | Connector Type | Number of Positions | Insulation Material | Mounting Type | Number of Rows | Pitch [x] | Pitch [x] | Contact Termination | Row Spacing [x] | Note |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1-967623-3 | 0.217 in | 5.5 mm | 100 °C | -30 ░C | Yellow | Latch Lock | Female Socket | Receptacle | 15 | Polybutylene Terephthalate (PBT), Glass Filled | Free Hanging (In-Line) | 3 | 5 mm | 0.197 in | Crimp | ||
TE Connectivity AMP Connectors 1-967623-5 | 0.217 in | 5.5 mm | 100 °C | -30 ░C | Brown | Latch Holder | Female Socket | Receptacle | 15 | Polybutylene Terephthalate (PBT), Glass Filled | Free Hanging (In-Line) | 3 | 5 mm | 0.197 in | Crimp | ||
TE Connectivity AMP Connectors 1-967623-4 | 5.51 mm | 100 °C | -30 ░C | Blue | Female Socket | Receptacle | 15 | Polybutylene Terephthalate (PBT), Glass Filled | Free Hanging (In-Line) | 3 | 5 mm | 0.197 in | Crimp | 0.217 in | Contacts Not Included |
Description
General part information
967623 Series
15 Rectangular Connectors - Housings Receptacle Brown 0.197" (5.00mm)
