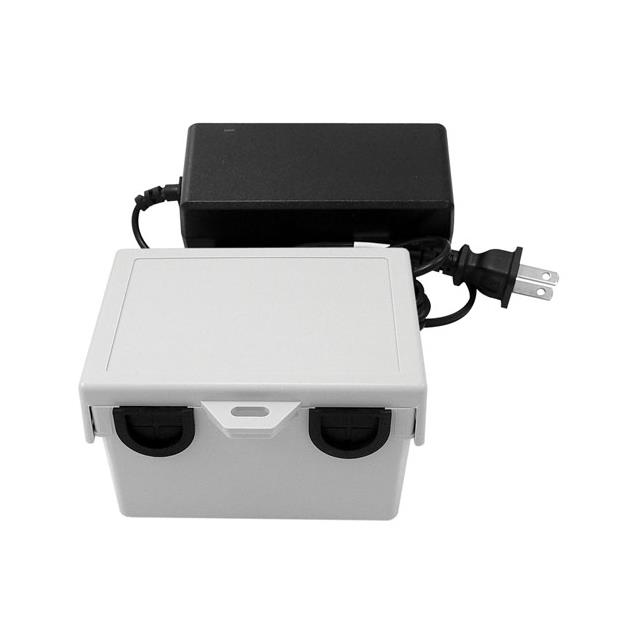

BT-CAT6P1HPW48W
ActivePasternack
INJDC PWR HP CAT6 48 VDC KIT
BT-CAT6P1HPW48W
ActivePasternack
INJDC PWR HP CAT6 48 VDC KIT
Description
General part information
BT-CAT6P1HPW48W
48V Power Over Ethernet (POE) 1 Port Midspan Injector 10/100/1000 Mbps Data Rate
Technical Specifications
Parameters and characteristics for this part
| Specification | BT-CAT6P1HPW48W |
|---|---|
| Compliance | IEEE802.3at, IEEE802.3af |
| Current - Output | 1 A |
| Input Connector | RJ45 (Data, Power) |
| Maximum Data Rate | 1000 Mbps |
| Minimum Data Rate | 10 Mbps |
| Mounting Type | Chassis Mount |
| Note | AC Power Cord Included |
| Number of Ports | 1 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Output Connector | Power), RJ45 (Data |
| Power (Watts) - Per Port | 48 W |
| Size / Dimension Height | 2.83 in |
| Size / Dimension Length | 4.77 in |
| Size / Dimension Width | 4.09 in |
| Type | Midspan Injector |
| Typical Data Rate | 100 Mbps |
| Voltage - Output | 48 V |
