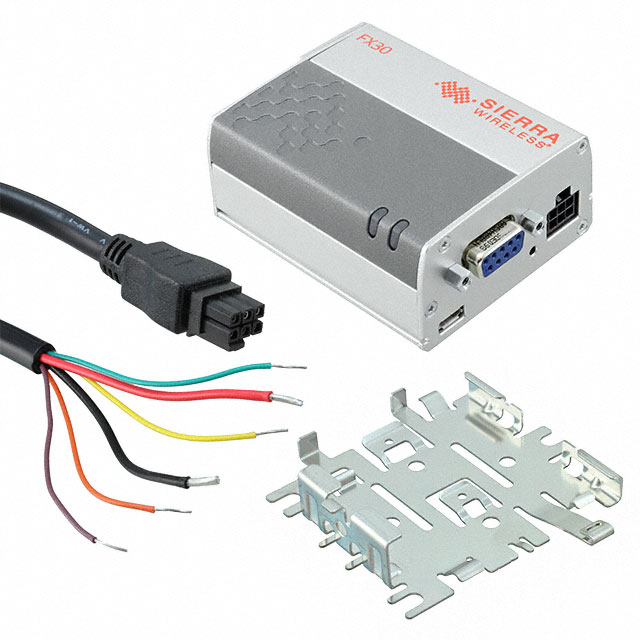

FX30S_1103232

Unknown

Sierra Wireless

GATEWAY EDGE GPRS GSM HSPA+

Search across all available documentation for this part.

Unknown

Sierra Wireless

GATEWAY EDGE GPRS GSM HSPA+

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FX30S_1103232	FX30S Series

Applications	General Purpose	General Purpose
Data Rate (Max)	-	110 Mbps
Data Rate (Max)	-	57 Mbps
Features	Legato, Linux, Programmable	Legato, Linux, Programmable
Frequency	1900 MHz, 1800 MHz, 900 MHz, 850 MHz	850 - 1900 MHz
Function	Gateway	Gateway
Interface	RS-232, RS-485, USB, UART, Serial, Analog, DB9, Digital	RS-232, RS-485, USB, UART, Serial, Analog, DB9, Digital
Modulation or Protocol	Cellular, GPRS, GSM, HSPA+, EDGE	Cellular, GPRS, GSM, HSPA+, EDGE, LTE
Voltage - Supply [Max]	32 VDC	32 VDC
Voltage - Supply [Min]	4.75 V	4.75 V

GATEWAY EDGE GPRS GSM HSPA+

Part	Frequency	Features	Modulation or Protocol	Function	Voltage - Supply [Min]	Voltage - Supply [Max]	Applications	Interface	Data Rate (Max) [Max]	Data Rate (Max)
Sierra Wireless FX30S_1103232	850 MHz, 900 MHz, 1800 MHz, 1900 MHz	Legato, Linux, Programmable	Cellular, EDGE, GPRS, GSM, HSPA+	Gateway	4.75 V	32 VDC	General Purpose	Analog, DB9, Digital, RS-232, RS-485, Serial, UART, USB
Sierra Wireless FX30S-LTEM1_1104087	850 MHz, 900 MHz, 1800 MHz, 1900 MHz	Legato, Linux, Programmable	Cellular, EDGE, GPRS, GSM, LTE	Gateway	4.75 V	32 VDC	General Purpose	Analog, DB9, Digital, RS-232, RS-485, Serial, UART, USB	110 Mbps
Sierra Wireless 1104542	850 MHz, 900 MHz, 1800 MHz, 1900 MHz	Legato, Linux, Programmable	Cellular, EDGE, GPRS, GSM, LTE	Gateway	4.75 V	32 VDC	General Purpose	Analog, DB9, Digital, RS-232, RS-485
Sierra Wireless FX30S_1104541	850 MHz, 900 MHz, 1800 MHz, 1900 MHz	Legato, Linux, Programmable	Cellular, EDGE, GPRS, GSM, HSPA+	Gateway	4.75 V	32 VDC	General Purpose	Analog, DB9, Digital, RS-232, RS-485, Serial, UART, USB		57 Mbps

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Cellular, EDGE, GPRS, GSM, HSPA+ Gateway Analog, Digital, Serial, RS-232, RS-485, DB9, UART, USB
