828347-1

Active

TE Connectivity AMP Connectors

CONN D-SUB FEM SCREW LOCK KIT

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN D-SUB FEM SCREW LOCK KIT

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	828347-1	828347 Series

Accessory Type	Jackscrew Socket	Jackscrew Socket
Features	Hardware Included	Hardware Included
For Use With/Related Products	D-Sub Front Panel Mount Connectors	D-Sub Front Panel Mount Connectors
Length - Below Head	5 mm	5 mm
Length - Below Head	0.197 in	0.197 in
Length - Below Head	-	0.382 - 0.433 in
Length - Below Head	-	9.7 - 11 mm
Length - Threaded Portion Below Head	-	9.7 mm
Length - Threaded Portion Below Head [x]	5 mm	5 - 11 mm
Length - Threaded Portion Below Head [x]	0.197 in	0.197 - 0.433 "
Thread Size	4-40 Screw, 4-40 Socket	M3 Socket, 4-40 Screw, 4-40 Socket

CONN D-SUB FEM SCREW LOCK KIT

Part	Features	For Use With/Related Products	Length - Threaded Portion Below Head [x]	Length - Threaded Portion Below Head	Thread Size	Accessory Type	Length - Below Head [x]	Length - Below Head [x]	Length - Threaded Portion Below Head [x]	Length - Below Head	Length - Below Head
TE Connectivity AMP Connectors 828347-4	Hardware Included	D-Sub Front Panel Mount Connectors	0.382 "	9.7 mm	4-40 Screw, M3 Socket	Jackscrew Socket	0.382 in	9.7 mm
TE Connectivity AMP Connectors 828347-5	Hardware Included	D-Sub Front Panel Mount Connectors	0.433 in		4-40 Screw, 4-40 Socket	Jackscrew Socket	0.433 in	11 mm	11 mm
TE Connectivity AMP Connectors 828347-1	Hardware Included	D-Sub Front Panel Mount Connectors	0.197 in		4-40 Screw, 4-40 Socket	Jackscrew Socket			5 mm	5 mm	0.197 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

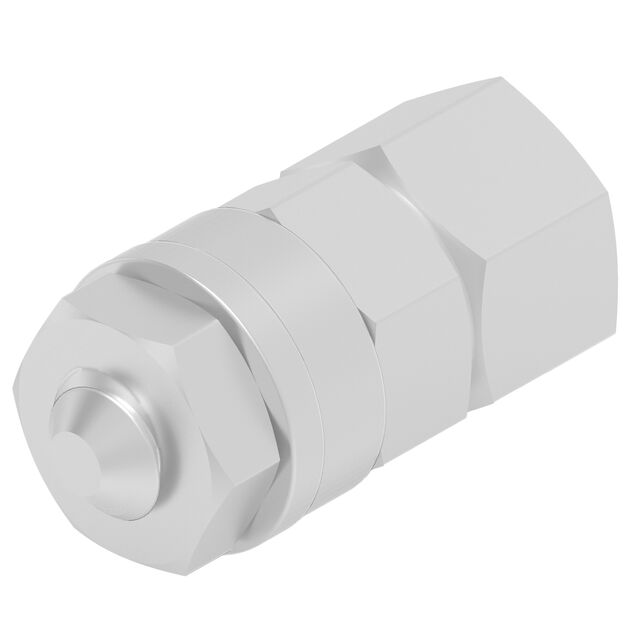

Jackscrew Socket For D-Sub Front Panel Mount Connectors
