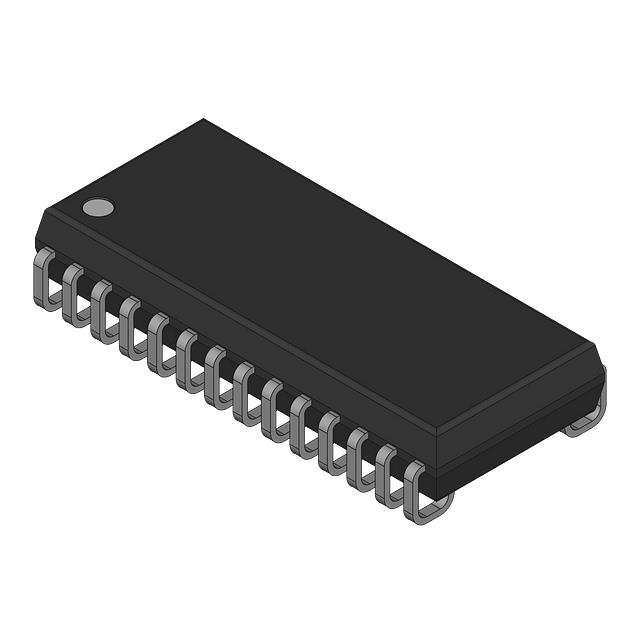

7164S20YG
ActiveIDT, Integrated Device Technology Inc
IC SRAM 64KBIT PARALLEL 28SOJ
Deep-Dive with AI
Search across all available documentation for this part.
7164S20YG
ActiveIDT, Integrated Device Technology Inc
IC SRAM 64KBIT PARALLEL 28SOJ
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 7164S20YG | 7164S Series |
|---|---|---|
| Access Time | 20 ns | 20 - 35 ns |
| Memory Format | SRAM | SRAM |
| Memory Interface | Parallel | Parallel |
| Memory Organization | 8 K | 8 K |
| Memory Size | 64 Kbit | 64 Kbit |
| Memory Type | Volatile | Volatile |
| Mounting Type | Surface Mount | Surface Mount, Through Hole |
| Operating Temperature | - | 125 °C |
| Operating Temperature | - | -55 °C |
| Operating Temperature [Max] | 70 °C | 70 °C |
| Operating Temperature [Min] | 0 °C | 0 °C |
| Package / Case | 7.62 mm | 0.6 - 7.62 mm |
| Package / Case | 0.3 in | 0.3 in |
| Package / Case | 28-BSOJ | 28-BSOJ, 28-CDIP |
| Package / Case | - | 15.24 mm |
| Supplier Device Package | 28-SOJ | 28-SOJ, 28-CDIP |
| Technology | SRAM - Asynchronous | SRAM - Asynchronous |
| Voltage - Supply [Max] | 5.5 V | 5.5 V |
| Voltage - Supply [Min] | 4.5 V | 4.5 V |
| Write Cycle Time - Word, Page | 20 ns | 20 - 35 ns |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 83 | $ 3.64 | |
7164S Series
IC SRAM 64KBIT PARALLEL 28SOJ
| Part | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Memory Interface | Package / Case | Package / Case | Package / Case | Memory Type | Write Cycle Time - Word, Page | Voltage - Supply [Min] | Voltage - Supply [Max] | Memory Format | Memory Size | Supplier Device Package | Access Time | Technology | Memory Organization | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
IDT, Integrated Device Technology Inc 7164S20YG | Surface Mount | 70 °C | 0 °C | Parallel | 7.62 mm | 0.3 in | 28-BSOJ | Volatile | 20 ns | 4.5 V | 5.5 V | SRAM | 64 Kbit | 28-SOJ | 20 ns | SRAM - Asynchronous | 8 K | |||
IDT, Integrated Device Technology Inc 7164S35DB | Through Hole | Parallel | 0.6 in | 28-CDIP | Volatile | 35 ns | 4.5 V | 5.5 V | SRAM | 64 Kbit | 28-CDIP | 35 ns | SRAM - Asynchronous | 8 K | 125 °C | -55 °C | 15.24 mm |
Description
General part information
7164S Series
SRAM - Asynchronous Memory IC 64Kbit Parallel 20 ns 28-SOJ
Documents
Technical documentation and resources
No documents available
