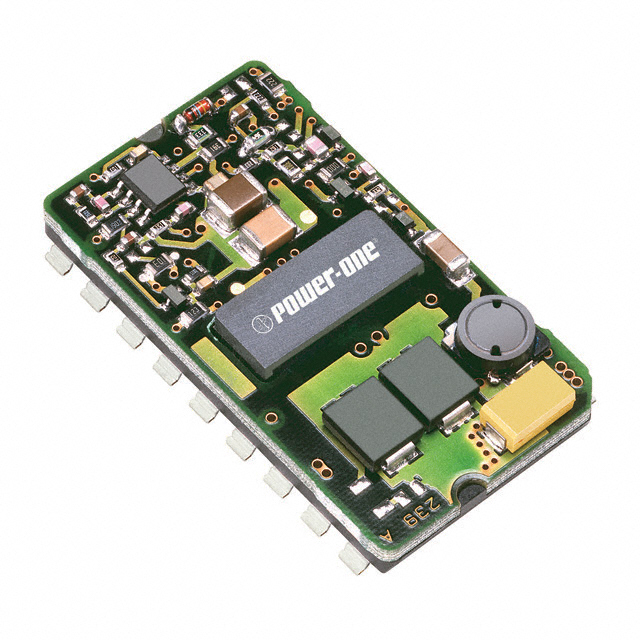

RNS02ZG-M6

Active

Bel Power Solutions

DC DC CONVERTER 5V 10W

Search across all available documentation for this part.

Active

Bel Power Solutions

DC DC CONVERTER 5V 10W

Technical Specifications

Parameters and characteristics for this part

Specification	RNS02ZG-M6

Applications	ITE (Commercial)
Control Features	Active High, Enable
Current - Output (Max) [Max]	2 A
Efficiency	83 %
Features	OCP, Remote On/Off
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max] [custom]	110 °C
Operating Temperature [Min] [custom]	-45 °C
Package / Case	18-SMD Module
Power (Watts)	10 W
Size / Dimension [x]	47.5 mm
Size / Dimension [x]	1.87 "
Size / Dimension [y]	25.4 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [z]	8.6 mm
Size / Dimension [z]	0.34 in
Type	Isolated Module
Voltage - Input (Max) [Max]	75 V
Voltage - Input (Min) [Min]	38 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	5 V

DC DC CONVERTER 5V 10W

Part	Package / Case	Voltage - Isolation	Power (Watts)	Voltage - Input (Min) [Min]	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Voltage - Input (Max) [Max]	Efficiency	Mounting Type	Features	Voltage - Output 1	Type	Current - Output (Max) [Max]	Number of Outputs	Control Features	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Applications
Bel Power Solutions RNS02ZG-M6	18-SMD Module	1.5 kV	10 W	38 V	-45 °C	110 °C	75 V	83 %	Surface Mount	OCP, Remote On/Off	5 V	Isolated Module	2 A	1	Active High, Enable	47.5 mm	25.4 mm	8.6 mm	0.34 in	25.4 mm	1.87 "	ITE (Commercial)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 1 Output 5V 2A 38V - 75V Input

Technical documentation and resources

No documents available
