1059729-1
ActiveTE Connectivity AMP Connectors

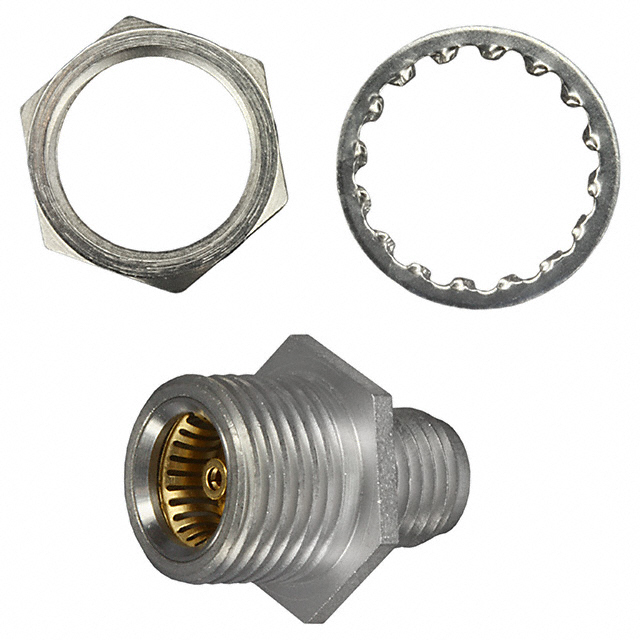

CONN ADAPT SMA JACK TO OSP JACK
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1059729-1
ActiveTE Connectivity AMP Connectors
CONN ADAPT SMA JACK TO OSP JACK
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1059729-1 |
|---|---|
| Adapter Series | OSM to OSP |
| Adapter Type | Jack to Jack |
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Center Gender | Female to Female |
| Conversion Type | Between Series |
| Convert From (Adapter End) | Female Socket, SMA Jack |
| Convert To (Adapter End) | OSP Jack, Female Socket |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded, Snap-On |
| Includes | 1 Nut, 1 Connector, 1 Lockwasher |
| Mounting Feature | Bulkhead |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
1059729 Series
CONN ADAPT SMA JACK TO OSP JACK
| Part | Convert To (Adapter End) | Mounting Feature | Center Contact Plating | Includes | Center Contact Material | Adapter Series | Convert From (Adapter End) | Dielectric Material | Fastening Type | Body Material | Adapter Type | Conversion Type | Center Gender | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1059729-1 | Female Socket, OSP Jack | Bulkhead | Gold | 1 Connector, 1 Lockwasher, 1 Nut | Beryllium Copper | OSM to OSP | Female Socket, SMA Jack | Polytetrafluoroethylene (PTFE) | Snap-On, Threaded | Stainless Steel | Jack to Jack | Between Series | Female to Female | Straight |
Description
General part information
1059729 Series
Adapter Coaxial Connector SMA Jack, Female Socket To OSP Jack, Female Socket
