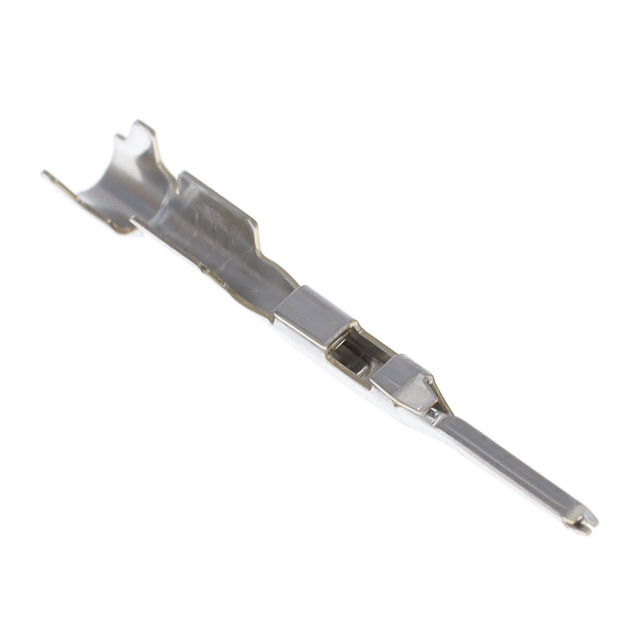

ZE064-2022PCF
ActiveHirose Electric USA, Inc.
CONN PIN 20-22AWG TIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ZE064-2022PCF
ActiveHirose Electric USA, Inc.
CONN PIN 20-22AWG TIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ZE064-2022PCF |
|---|---|
| Contact Finish | Tin |
| Contact Finish Thickness | 39.4 Áin |
| Contact Finish Thickness | 1 Ám |
| Contact Termination | Crimp |
| Pin or Socket | Pin |
| Wire Gauge [Max] | 22 AWG |
| Wire Gauge [Min] | 20 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.10 | |
| 10 | $ 0.08 | |||
| 25 | $ 0.08 | |||
| 50 | $ 0.07 | |||
| 100 | $ 0.07 | |||
| 250 | $ 0.07 | |||
| 500 | $ 0.06 | |||
| 1000 | $ 0.06 | |||
| 2500 | $ 0.06 | |||
| Tape & Reel (TR) | 15000 | $ 0.05 | ||
| 30000 | $ 0.05 | |||
| 45000 | $ 0.05 | |||
| 75000 | $ 0.04 | |||
| 105000 | $ 0.04 | |||
| 150000 | $ 0.04 | |||
Description
General part information
ZE064 Series
Pin Contact Tin 20-22 AWG Crimp
