Description
General part information

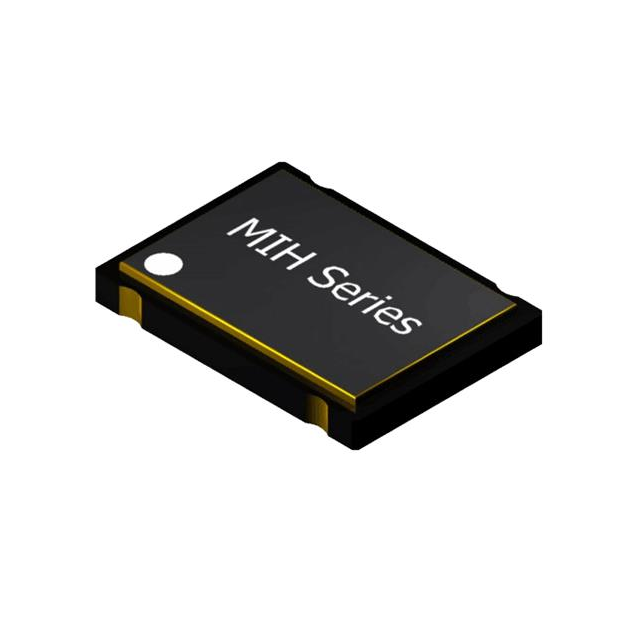

MIH302548AH-4.000MHZ-T
4 MHz XO (Standard) HCMOS Oscillator 3.3V Enable/Disable 4-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | MIH302548AH-4.000MHZ-T |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Disable) (Max) | 10 µA |
| Current - Supply (Max) | 40 mA |
| Frequency | 4 MHz |
| Frequency Stability | 25 ppm |
| Function | Enable, Disable |
| Height - Seated (Max) | 0.067 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output | HCMOS |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension Length | 0.283 in |
| Size / Dimension Width | 0.205 in |
| Type | XO (Standard) |
| Voltage - Supply | 3.3 V |
