LFMWLT150-1002

Active

EOS Power

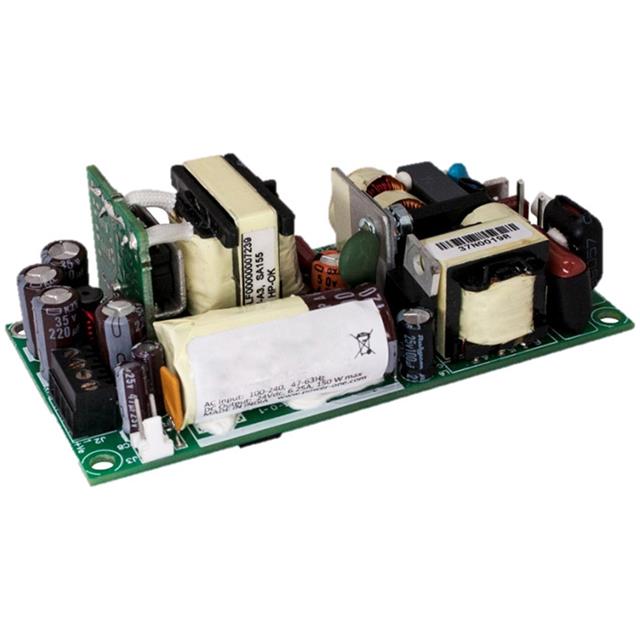

AC/DC CONVERTER 15V 100W

Deep-Dive with AI

Search across all available documentation for this part.

LFMWLT150-1002

Active

EOS Power

AC/DC CONVERTER 15V 100W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	LFMWLT150-1002	MWLT150 Series

Applications	Medical	Medical
Approval Agency	cUL, CE, UL, CB, NEMKO	cUL, CE, UL, CB, NEMKO
Current - Output 1	6.67 A	2.08 - 16 A
Efficiency	86 %	86 %
Features	PFC, Adjustable Output, Universal Input	PFC, Adjustable Output, Universal Input
Minimum Load Required	False	False
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	1	1
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-20 °C	-20 °C
Power (Watts)	150 W	150 W
Power (Watts)	100 W	80 - 100 W
Size / Dimension [x]	101.6 mm	101.6 mm
Size / Dimension [x]	4 in	4 in
Size / Dimension [y]	2 in	2 in
Size / Dimension [y]	50.8 mm	50.8 mm
Size / Dimension [z]	1.32 in	1.32 in
Size / Dimension [z]	33.6 mm	33.6 mm
Type	Open Frame	Open Frame
Voltage - Input [Max]	390 VDC, 264 VAC	264 - 390 VDC
Voltage - Input [Min]	90 VAC, 120 VDC	90 - 120 VAC
Voltage - Isolation	5.9 kV	5.9 kV
Voltage - Output 1	15 V	5 - 48 V

MWLT150 Series

AC/DC CONVERTER 24V 100W

Part	Approval Agency	Applications	Power (Watts)	Power (Watts)	Mounting Type	Voltage - Input [Min]	Voltage - Input [Max]	Number of Outputs	Voltage - Output 1	Voltage - Isolation	Current - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Features	Efficiency
EOS Power LFMWLT150-1003	CB, CE, cUL, NEMKO, UL	Medical	150 W	100 W	Chassis Mount	90 VAC, 120 VDC	264 VAC, 390 VDC	1	24 V	5.9 kV	4.17 A	-20 °C	70 °C	Open Frame	2 in	101.6 mm	1.32 in	33.6 mm	50.8 mm	4 in	Adjustable Output, PFC, Universal Input	86 %
EOS Power LFMWLT150-1000	CB, CE, cUL, NEMKO, UL	Medical		80 W, 100 W	Chassis Mount	90 VAC, 120 VDC	264 VAC, 390 VDC	1	5 V	5.9 kV	16 A	-20 °C	70 °C	Open Frame	2 in	101.6 mm	1.32 in	33.6 mm	50.8 mm	4 in	Adjustable Output, PFC, Universal Input	86 %
EOS Power LFMWLT150-1004	CB, CE, cUL, NEMKO, UL	Medical	150 W	100 W	Chassis Mount	90 VAC, 120 VDC	264 VAC, 390 VDC	1	48 V	5.9 kV	2.08 A	-20 °C	70 °C	Open Frame	2 in	101.6 mm	1.32 in	33.6 mm	50.8 mm	4 in	Adjustable Output, PFC, Universal Input	86 %
EOS Power LFMWLT150-1302	CB, CE, cUL, NEMKO, UL	Medical	150 W	100 W	Chassis Mount	90 VAC, 120 VDC	264 VAC, 390 VDC	1	15 V	5.9 kV	6.67 A	-20 °C	70 °C	Open Frame	2 in	101.6 mm	1.32 in	33.6 mm	50.8 mm	4 in	Adjustable Output, PFC, Universal Input	86 %
EOS Power LFMWLT150-1301	CB, CE, cUL, NEMKO, UL	Medical	150 W	100 W	Chassis Mount	90 VAC, 120 VDC	264 VAC, 390 VDC	1	12 V	5.9 kV	8.33 A	-20 °C	70 °C	Open Frame	2 in	101.6 mm	1.32 in	33.6 mm	50.8 mm	4 in	Adjustable Output, PFC, Universal Input	86 %
EOS Power LFMWLT150-1002	CB, CE, cUL, NEMKO, UL	Medical	150 W	100 W	Chassis Mount	90 VAC, 120 VDC	264 VAC, 390 VDC	1	15 V	5.9 kV	6.67 A	-20 °C	70 °C	Open Frame	2 in	101.6 mm	1.32 in	33.6 mm	50.8 mm	4 in	Adjustable Output, PFC, Universal Input	86 %
EOS Power LFMWLT150-1001	CB, CE, cUL, NEMKO, UL	Medical	150 W	100 W	Chassis Mount	90 VAC, 120 VDC	264 VAC, 390 VDC	1	12 V	5.9 kV	8.33 A	-20 °C	70 °C	Open Frame	2 in	101.6 mm	1.32 in	33.6 mm	50.8 mm	4 in	Adjustable Output, PFC, Universal Input	86 %
EOS Power LFMWLT150-1304	CB, CE, cUL, NEMKO, UL	Medical	150 W	100 W	Chassis Mount	90 VAC, 120 VDC	264 VAC, 390 VDC	1	48 V	5.9 kV	2.08 A	-20 °C	70 °C	Open Frame	2 in	101.6 mm	1.32 in	33.6 mm	50.8 mm	4 in	Adjustable Output, PFC, Universal Input	86 %
EOS Power LFMWLT150-1303	CB, CE, cUL, NEMKO, UL	Medical	150 W	100 W	Chassis Mount	90 VAC, 120 VDC	264 VAC, 390 VDC	1	24 V	5.9 kV	4.17 A	-20 °C	70 °C	Open Frame	2 in	101.6 mm	1.32 in	33.6 mm	50.8 mm	4 in	Adjustable Output, PFC, Universal Input	86 %
EOS Power LFMWLT150-1300	CB, CE, cUL, NEMKO, UL	Medical		80 W	Chassis Mount	90 VAC, 120 VDC	264 VAC, 390 VDC	1	5 V	5.9 kV	16 A	-20 °C	70 °C	Open Frame	2 in	101.6 mm	1.32 in	33.6 mm	50.8 mm	4 in	Adjustable Output, PFC, Universal Input	86 %

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 58.04

Description

General part information

MWLT150 Series

Open Frame AC DC Converters 1 Output 15V 90 ~ 264 VAC, 120 ~ 390 VDC Input

Documents

Technical documentation and resources

No documents available
