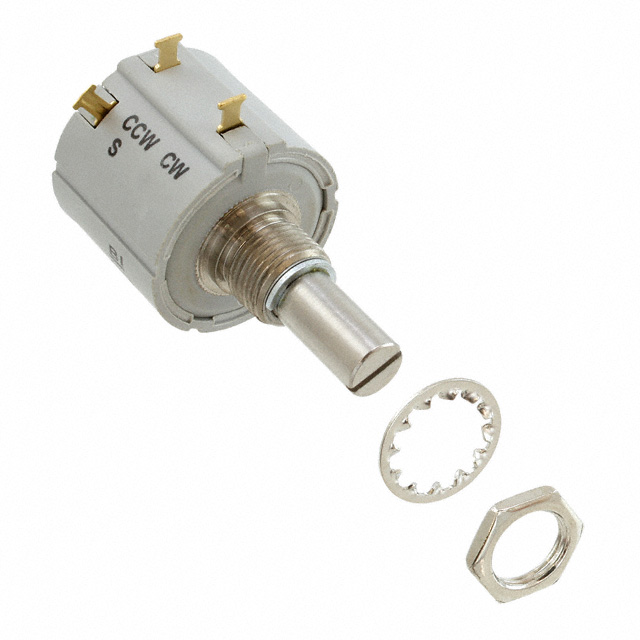

8146R5KL.25
ActiveTT Electronics/BI
POT 5K OHM 2W HYBRID LINEAR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
8146R5KL.25
ActiveTT Electronics/BI
POT 5K OHM 2W HYBRID LINEAR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 8146R5KL.25 |
|---|---|
| Actuator Diameter | 6.35 mm |
| Actuator Diameter [diameter] | 0.25 in |
| Actuator Length [z] | 0.812 in |
| Actuator Length [z] | 20.63 mm |
| Actuator Type | Slotted |
| Adjustment Type | User Defined |
| Built in Switch | False |
| Bushing Thread | 3/8-32 |
| Features | High Torque |
| Number of Gangs | 1 |
| Number of Turns | 10 |
| Power (Watts) | 2 W |
| Resistance (Ohms) | 5 kOhms |
| Resistive Material | Hybrid |
| Rotation | 3600 ° |
| Size - Body [diameter] | 0.874 in |
| Size - Body [diameter] | 22.2 mm |
| Taper | Linear |
| Temperature Coefficient | 50 ppm/°C |
| Termination Style | Solder Turret |
| Tolerance | 10 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 37.23 | |
| 10 | $ 34.91 | |||
| 30 | $ 28.70 | |||
| 50 | $ 24.82 | |||
| 100 | $ 24.05 | |||
| 250 | $ 22.49 | |||
Description
General part information
8146R5KL.25
5k Ohm 1 Gang Linear Panel Mount Potentiometer 10.0 Turns Hybrid 2W Solder Turret
