VY2472M49Y5US6UV5
ActiveVishay Dale
VY2 X440Y300VAC 4,7NF ±20% Y5U AMMO E3 ROHS COMPLIANT: YES
VY2472M49Y5US6UV5
ActiveVishay Dale
VY2 X440Y300VAC 4,7NF ±20% Y5U AMMO E3 ROHS COMPLIANT: YES
Description
General part information
VY2472M49Y5US6UV5

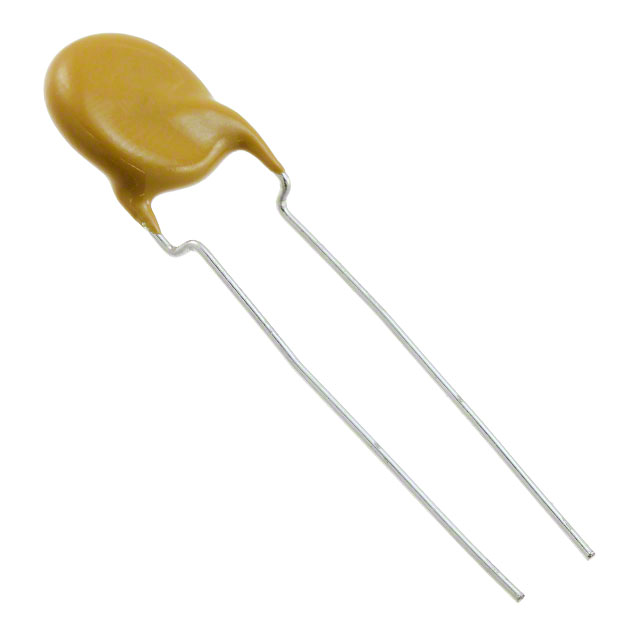

4700 pF ±20% 440VAC Ceramic Capacitor Y5U (E) Radial, Disc
Technical Specifications
Parameters and characteristics for this part
| Specification | VY2472M49Y5US6UV5 |
|---|---|
| Applications | Safety |
| Capacitance | 4700 pF |
| Lead Spacing | 0.197 in |
| Lead Style | Formed Leads - Kinked |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Disc, Radial |
| Ratings | Y2, X1 |
| Size / Dimension Diameter | 0.492 in |
| Temperature Coefficient | Y5U (E) |
| Tolerance | 20 % |
| Voltage - Rated | 440 V |
