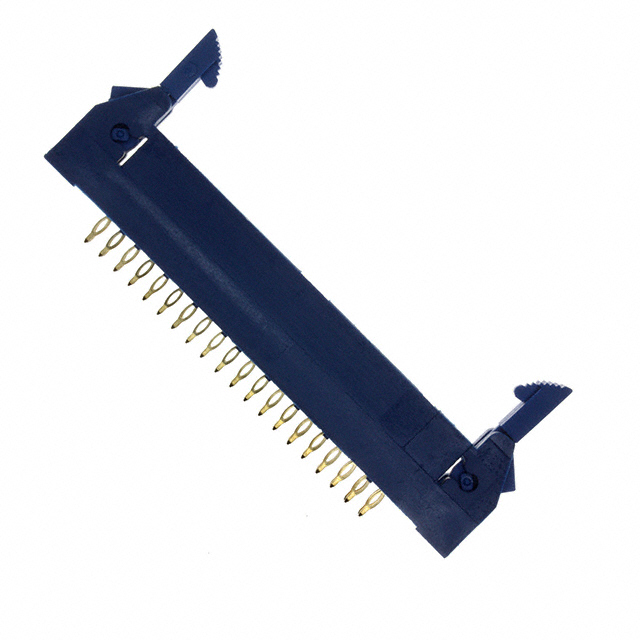

Specification	10080054-169LF

Connector Type	Header
Contact Finish - Mating	Gold, GXT™
Contact Finish Thickness - Mating	30 µin
Contact Length - Mating	0.234 in
Contact Length - Post	0.16 in
Contact Material	Phosphor Bronze Alloy
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Eject Hooks, Latch Lock
Features	Keying Slot
Insulation Color	Blue
Insulation Height	0.64 in
Insulation Material	Polyester, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	40
Number of Positions Loaded	All
Number of Rows	2
Overall Contact Length	0.629 in
Pitch - Mating	0.1 in
Row Spacing - Mating	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Cable/Wire, Board
Termination	Press-Fit, Solder

10080054 Series

Part	Contact Finish Thickness - Mating	Mounting Type	Contact Length - Post	Insulation Material	Features	Insulation Height	Insulation Color	Termination	Row Spacing - Mating	Pitch - Mating	Connector Type	Contact Type	Contact Length - Mating	Number of Positions Loaded	Shrouding	Contact Material	Style	Contact Shape	Fastening Type	Contact Finish - Mating	Number of Rows	Number of Positions	Overall Contact Length	Material Flammability Rating	Contact Finish Thickness - Post	Contact Finish - Post	Number of Positions Loaded
Amphenol ICC (FCI) 10080054-055LF	30 µin	Through Hole	0.16 in	Glass Filled Polyester	Keying Slot	0.64 in	Blue	Press-Fit Solder	0.1 in	0.1 in	Header	Male Pin	0.234 in	All	Shrouded - 4 Wall	Phosphor Bronze Alloy	Board Cable/Wire	Square	Push-Pull	Gold	2	16	0.629 in	UL94 V-0
Amphenol ICC (FCI) 10080054-850LF	30 µin	Through Hole	0.16 in	Glass Filled Polyester	Keying Slot	0.64 in	Gray	Press-Fit Solder	0.1 in	0.1 in	Header	Male Pin	0.234 in	All	Shrouded - 4 Wall	Phosphor Bronze Alloy	Board Cable/Wire	Square	Eject Hooks Latch Lock	Gold	2	50	0.629 in	UL94 V-0
Amphenol ICC (FCI) 10080054-140LF	30 µin	Through Hole	0.16 in	Glass Filled Polyester	Keying Slot	0.64 in	Blue	Press-Fit Solder	0.1 in	0.1 in	Header	Male Pin	0.234 in	All	Shrouded - 4 Wall	Phosphor Bronze Alloy	Board Cable/Wire	Square	Latch Lock/Eject Hooks Short	Gold GXT™	2	30	0.629 in	UL94 V-0
Amphenol ICC (FCI) 10080054-199LF	30 µin	Through Hole	0.16 in	Glass Filled Polyester	Keying Slot	0.64 in	Blue	Press-Fit Solder	0.1 in	0.1 in	Header	Male Pin	0.234 in	All	Shrouded - 4 Wall	Phosphor Bronze Alloy	Board Cable/Wire	Square	Push-Pull	Gold	2	50	0.629 in	UL94 V-0
Amphenol ICC (FCI) 10080054-139LF	30 µin	Through Hole	0.16 in	Glass Filled Polyester	Keying Slot	0.64 in	Blue	Press-Fit Solder	0.1 in	0.1 in	Header	Male Pin	0.234 in	All	Shrouded - 4 Wall	Phosphor Bronze Alloy	Board Cable/Wire	Square	Latch Lock/Eject Hooks Short	Gold	2	30	0.629 in	UL94 V-0
Amphenol ICC (FCI) 10080054-553LF	30 µin	Through Hole	0.16 in	Glass Filled Polyester	Keying Slot	0.64 in	Blue	Press-Fit Solder	0.1 in	0.1 in	Header	Male Pin	0.234 in		Shrouded - 4 Wall	Phosphor Bronze Alloy	Board Cable/Wire	Square	Eject Hooks Latch Lock	Gold	2	15	0.629 in	UL94 V-0	100 Ąin	Tin	7
Amphenol ICC (FCI) 10080054-002LF	30 µin	Through Hole	0.16 in	Glass Filled Polyester	Keying Slot	0.64 in	Blue	Press-Fit Solder	0.1 in	0.1 in	Header	Male Pin	0.234 in	All	Shrouded - 4 Wall	Phosphor Bronze Alloy	Board Cable/Wire	Square	Push-Pull	Gold GXT™	2	10	0.629 in	UL94 V-0
Amphenol ICC (FCI) 10080054-049LF	30 µin	Through Hole	0.16 in	Glass Filled Polyester	Keying Slot	0.64 in	Blue	Press-Fit Solder	0.1 in	0.1 in	Header	Male Pin	0.234 in	All	Shrouded - 4 Wall	Phosphor Bronze Alloy	Board Cable/Wire	Square	Latch Lock/Eject Hooks Short	Gold	2	14	0.629 in	UL94 V-0
Amphenol ICC (FCI) 10080054-510LF	30 µin	Through Hole	0.16 in	Glass Filled Polyester	Keying Slot	0.64 in	Blue	Press-Fit Solder	0.1 in	0.1 in	Header	Male Pin	0.234 in	All	Shrouded - 4 Wall	Phosphor Bronze Alloy	Board Cable/Wire	Square	Push-Pull	Gold	2	50	0.629 in	UL94 V-0	100 Ąin	Tin
Amphenol ICC (FCI) 10080054-134LF	30 µin	Through Hole	0.16 in	Glass Filled Polyester	Keying Slot	0.64 in	Blue	Press-Fit Solder	0.1 in	0.1 in	Header	Male Pin	0.234 in	All	Shrouded - 4 Wall	Phosphor Bronze Alloy	Board Cable/Wire	Square	Eject Hooks Latch Lock	Gold GXT™	2	30	0.629 in	UL94 V-0
