Description
General part information
PRT-10811

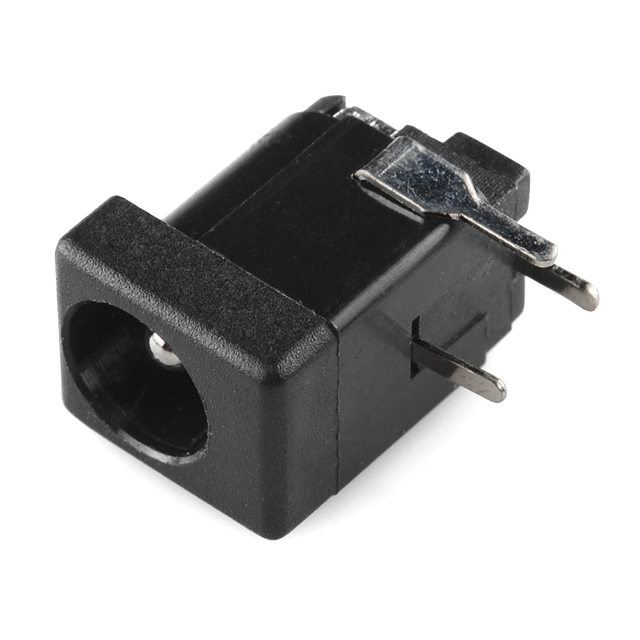

Power Barrel Connector Jack 2.10mm ID (0.083"), 5.50mm OD (0.217") Through Hole, Right Angle
Technical Specifications
Parameters and characteristics for this part
| Specification | PRT-10811 |
|---|---|
| Actual Diameter (ID) | 0.079 in |
| Actual Diameter (OD) | 0.252 in |
| Body Color | Black |
| Connector Type | Jack |
| Contact Material | Brass |
| Contact Material - Plating | Tin |
| Current Rating | 4 A |
| Gender | Male |
| Housing Material | PBT, Polybutylene Terephthalate |
| Industry Recognized Mating Diameter (ID) | 2.1 mm |
| Industry Recognized Mating Diameter (OD) | 5.5 mm |
| Internal Switch(s) | Single Switch, Normally Closed |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Conductors | 2 |
| Number of Contacts | 3 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Shielding | Unshielded |
| Termination | Solder |
| Voltage - Rated | 20 V |
