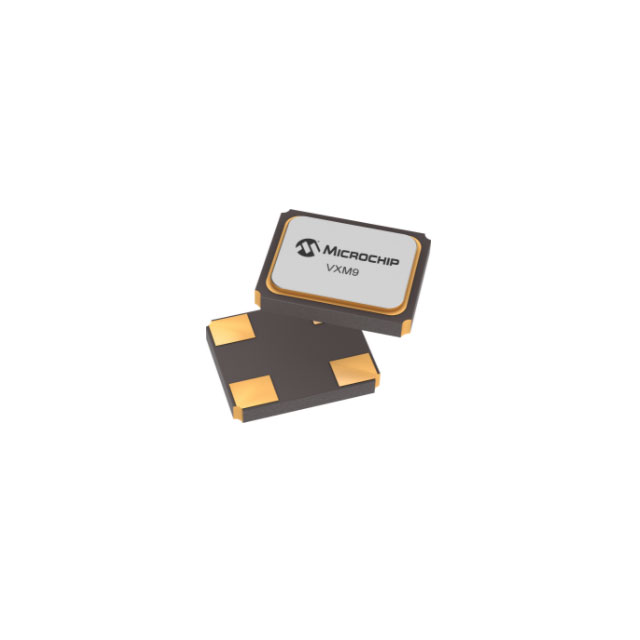

VXM9-9014-64M0000000TR
ActiveMicrochip Technology
CRYSTAL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
VXM9-9014-64M0000000TR
ActiveMicrochip Technology
CRYSTAL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | VXM9-9014-64M0000000TR | VXM9-9014 Series |
|---|---|---|
| Frequency | 64 MHz | 64 MHz |
| Frequency Tolerance | 20 ppm | 20 ppm |
| Height - Seated (Max) [Max] [z] | 0.022 in | 0.022 in |
| Height - Seated (Max) [Max] [z] | 0.55 mm | 0.55 mm |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Mode | Fundamental | Fundamental |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -30 ░C | -30 ░C |
| Package / Case | 4-SMD, No Lead | 4-SMD, No Lead |
| Size / Dimension [x] | 2 mm | 2 mm |
| Size / Dimension [x] | 0.079 in | 0.079 in |
| Size / Dimension [y] | 0.063 in | 0.063 in |
| Size / Dimension [y] | 1.6 mm | 1.6 mm |
| Type | MHz Crystal | MHz Crystal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 3000 | $ 0.88 | |
VXM9-9014 Series
CRYSTAL
| Part | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Operating Mode | Frequency Tolerance | Type | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Frequency | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology VXM9-9014-64M0000000TR | 0.022 in | 0.55 mm | Fundamental | 20 ppm | MHz Crystal | -30 ░C | 85 °C | 4-SMD, No Lead | 2 mm | 0.063 in | 1.6 mm | 0.079 in | 64 MHz | Surface Mount |
Microchip Technology VXM9-9014-64M0000000 | 0.022 in | 0.55 mm | Fundamental | 20 ppm | MHz Crystal | -30 ░C | 85 °C | 4-SMD, No Lead | 2 mm | 0.063 in | 1.6 mm | 0.079 in | 64 MHz | Surface Mount |
Description
General part information
VXM9-9014 Series
64 MHz ±20ppm Crystal 4-SMD, No Lead
