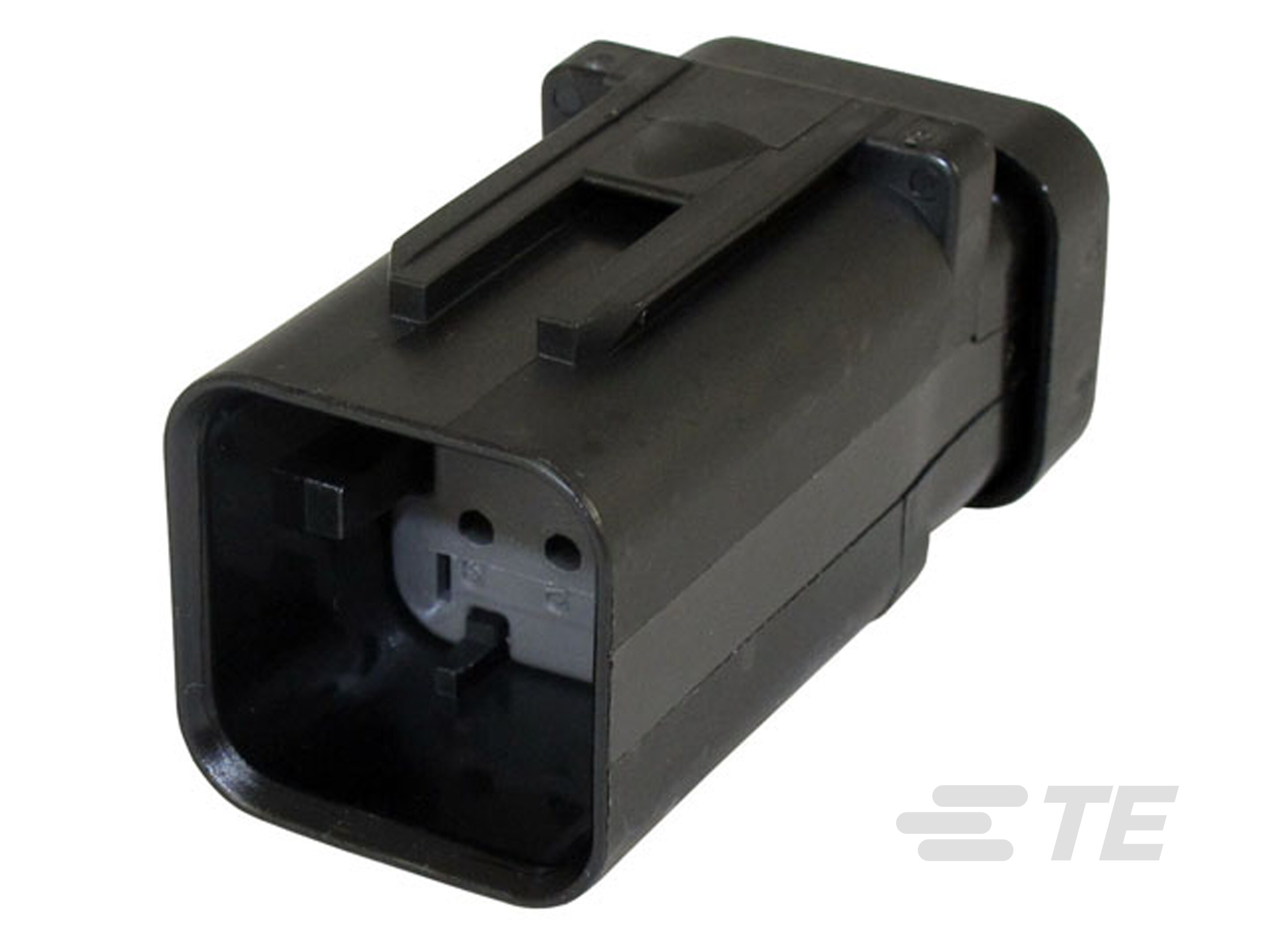

Specification	776434-2

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Male Pin
Fastening Type	Locking Ramp
Insulation Material	Glass Filled, Thermoplastic
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	6
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Pitch	0.177 in
Row Spacing	0.209 in

AMPSEAL 16 Series

...

Part	Accessory Type	For Use With/Related Products	Features	Number of Positions	Color	Mounting Type	Row Spacing	Contact Type	Pitch	Fastening Type	Operating Temperature (Min)	Operating Temperature (Max)	Connector Type	Number of Rows	Contact Termination	Insulation Material	Note
TE Connectivity AMP Connectors 1924487-3	Retainer Clip
TE Connectivity AMP Connectors 2302494-2	Backshell	AMPSEAL Connectors	Right Angle	8
TE Connectivity AMP Connectors 2320933-3
TE Connectivity AMP Connectors 2320925-1			Connector Position Assurance (CPA) IP67 Sealed Terminal Position Lock (TPA)	12	Gray	Free Hanging (In-Line)	0.209 in	Female Socket	0.177 in	Latch Lock	-40 °C	150 °C	Plug	2	Crimp	Glass Filled Polybutylene Terephthalate (PBT)
TE Connectivity AMP Connectors 776538-1				8	Black	Free Hanging (In-Line)	0.209 in	Male Pin	0.177 in	Locking Ramp	-40 °C	125 °C	Receptacle	2	Crimp	Glass Filled Thermoplastic	Contacts Not Included
TE Connectivity AMP Connectors 2320928-4			Connector Position Assurance (CPA) IP67 Sealed Terminal Position Lock (TPA)	4	Orange	Free Hanging (In-Line)	0.177 in	Female Socket	0.209 in	Locking Ramp	-40 °C	150 °C	Receptacle	2	Crimp	Glass Filled Polybutylene Terephthalate (PBT)
TE Connectivity AMP Connectors 2302488-2	Backshell	AMPSEAL Connectors	Right Angle	2
TE Connectivity AMP Connectors 2320932-3			Connector Position Assurance (CPA) IP67 Sealed Terminal Position Lock (TPA)	2	Purple	Free Hanging (In-Line)		Female Socket	0.177 in	Latch Lock	-40 °C	150 °C	Plug	1	Crimp	Glass Filled Polybutylene Terephthalate (PBT)
TE Connectivity AMP Connectors 776538-2
TE Connectivity AMP Connectors 2320931-3			Connector Position Assurance (CPA) IP67 Sealed Terminal Position Lock (TPA)	12	Purple	Free Hanging (In-Line)	0.209 in	Male Pin	0.177 in	Locking Ramp	-40 °C	150 °C	Receptacle	2	Crimp	Glass Filled Polybutylene Terephthalate (PBT)	Contacts Not Included
