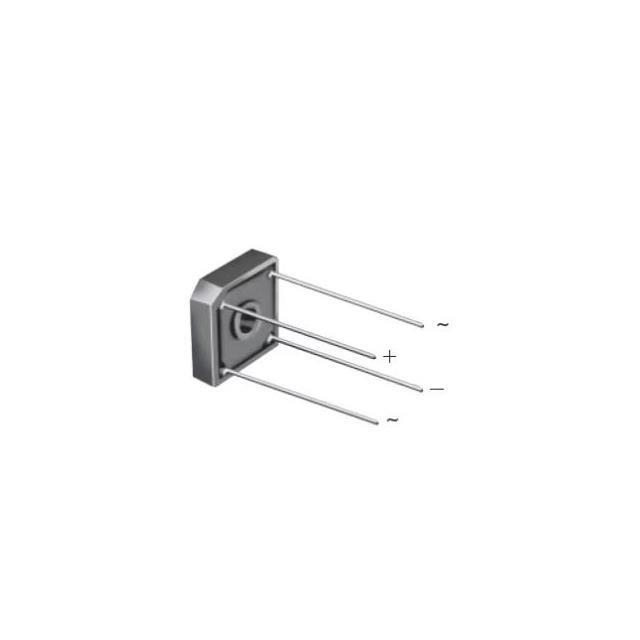

GBPC2508W
ActiveSMC Diode Solutions
BRIDGE RECT 1P 800V 25A GBPC-W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GBPC2508W
ActiveSMC Diode Solutions
BRIDGE RECT 1P 800V 25A GBPC-W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GBPC2508W |
|---|---|
| Current - Average Rectified (Io) | 25 A |
| Current - Reverse Leakage @ Vr | 5 µA |
| Diode Type | Single Phase |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | GBPC-W, 4-Square |
| Supplier Device Package | GBPC-W |
| Technology | Standard |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V |
| Voltage - Peak Reverse (Max) [Max] | 800 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.20 | |
| 10 | $ 3.34 | |||
| 25 | $ 3.05 | |||
| 100 | $ 2.66 | |||
| 250 | $ 2.43 | |||
| 500 | $ 2.26 | |||
| 1000 | $ 2.11 | |||
| Tape & Box (TB) | 100 | $ 2.37 | ||
| 300 | $ 2.24 | |||
| 500 | $ 2.11 | |||
| 1000 | $ 1.81 | |||
| 2500 | $ 1.70 | |||
| 5000 | $ 1.63 | |||
Description
General part information
GBPC2508W
Bridge Rectifier Single Phase Standard 800 V Through Hole GBPC-W
