1408150-1

Active

TE Connectivity AMP Connectors

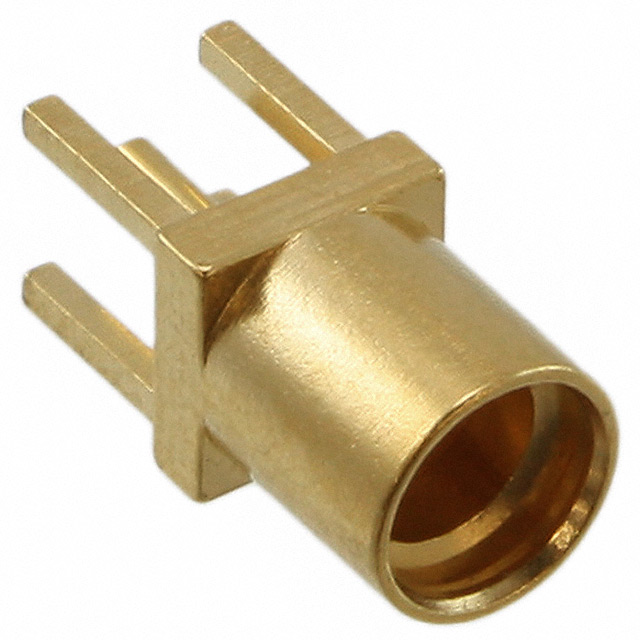

CONN MMCX JACK STR 50 OHM PCB

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN MMCX JACK STR 50 OHM PCB

Technical Specifications

Parameters and characteristics for this part

Specification	1408150-1

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	MMCX
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Through Hole
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	170 V

CONN MMCX JACK STR 50 OHM PCB

Part	Shield Termination	Center Contact Material	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Dielectric Material	Connector Type	Body Material	Center Contact Plating	Impedance	Mating Cycles	Frequency - Max [Max]	Number of Ports	Body Finish	Housing Color	Contact Termination	Fastening Type	Mounting Type	Connector Style
TE Connectivity AMP Connectors 1408150-1	Solder	Beryllium Copper	170 V	155 °C	-55 °C	Polytetrafluoroethylene (PTFE)	Female Socket, Jack	Brass	Gold	50 Ohms	500	6000 MHz	1	Gold	Gold	Solder	Snap-On	Through Hole	MMCX

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

MMCX Connector Jack, Female Socket 50 Ohms Through Hole Solder
