TG-APC93-320-320-1.5-0

Obsolete

t-Global Technology

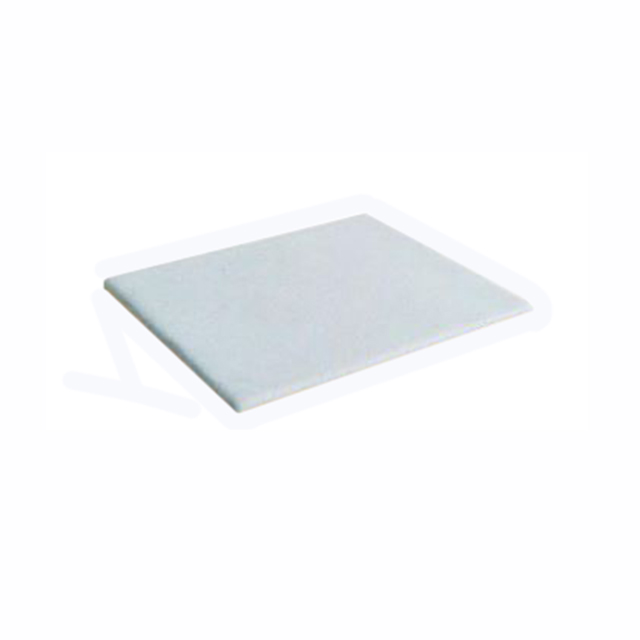

THERM PAD 320X320MM GRAY

Search across all available documentation for this part.

Obsolete

t-Global Technology

THERM PAD 320X320MM GRAY

Technical Specifications

Parameters and characteristics for this part

Part	Outline [y]	Outline [x]	Shelf Life	Material	Type	Thermal Conductivity	Shape	Color	Thickness	Thickness
t-Global Technology TG-APC93-300-300-1.0-0	300 mm	300 mm	24 Months	Non-Silicone	Conductive Pad Sheet	2 W/m-K	Square	Gray	0.0394 in	1 mm
t-Global Technology TG-APC93-24-21.01-3.0-0	21.01 mm	24 mm	24 Months	Non-Silicone	Conductive Pad Sheet	2 W/m-K	Rectangular	Gray	0.118 in	3 mm
t-Global Technology TG-APC93-24-21.01-5.0-0	21.01 mm	24 mm	24 Months	Non-Silicone	Conductive Pad Sheet	2 W/m-K	Rectangular	Gray	0.197 "	5 mm
t-Global Technology TG-APC93-150-150-2.5-0	150 mm	150 mm	24 Months	Non-Silicone	Conductive Pad Sheet	2.1 W/m-K	Square	Gray	0.098 in	2.489 mm
t-Global Technology TG-APC93-19.5-12.7-3.0-0	12.7 mm	19.5 mm	24 Months	Non-Silicone	Conductive Pad Sheet	2 W/m-K	Rectangular	Gray	0.118 in	3 mm
t-Global Technology TG-APC93-19.5-12.7-1.0-0	12.7 mm	19.5 mm	24 Months	Non-Silicone	Conductive Pad Sheet	2 W/m-K	Rectangular	Gray	0.0394 in	1 mm
t-Global Technology TG-APC93-10-10-1.0-0	10 mm	10 mm	24 Months	Non-Silicone	Conductive Pad Sheet	2 W/m-K	Square	Gray	0.0394 in	1 mm
t-Global Technology TG-APC93-100-100-3.0-0	100 mm	100 mm	24 Months	Non-Silicone	Conductive Pad Sheet	2 W/m-K	Square	Gray	0.118 in	3 mm
t-Global Technology TG-APC93-5-5-2.0-0	5 mm	5 mm	24 Months	Non-Silicone	Conductive Pad Sheet	2 W/m-K	Square	Gray	0.079 in	2 mm
t-Global Technology TG-APC93-20-5-2.0-0	5 mm	20 mm	24 Months	Non-Silicone	Conductive Pad Sheet	2 W/m-K	Rectangular	Gray	0.079 in	2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Thermal Pad Gray 320.00mm x 320.00mm Square

Technical documentation and resources
