3-828101-1

Active

TE Connectivity AMP Connectors

CONN D-SUB FEMALE SCREW LOCK

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN D-SUB FEMALE SCREW LOCK

Technical Specifications

Parameters and characteristics for this part

Specification	3-828101-1

Accessory Type	Jackscrew Socket
For Use With/Related Products	D-Sub Front Panel Mount Connectors
Length - Below Head	3 mm
Length - Below Head	0.118 in
Length - Threaded Portion Below Head [x]	0.118 "
Length - Threaded Portion Below Head [x]	3 mm
Thread Size	M3 Socket, 4-40 Screw

CONN D-SUB FEMALE SCREW LOCK

Part	Length - Threaded Portion Below Head [x]	Length - Threaded Portion Below Head [x]	For Use With/Related Products	Length - Below Head	Length - Below Head	Accessory Type	Thread Size
TE Connectivity AMP Connectors 3-828101-1	0.118 "	3 mm	D-Sub Front Panel Mount Connectors	3 mm	0.118 in	Jackscrew Socket	4-40 Screw, M3 Socket

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	6000	$ 0.98

General part information

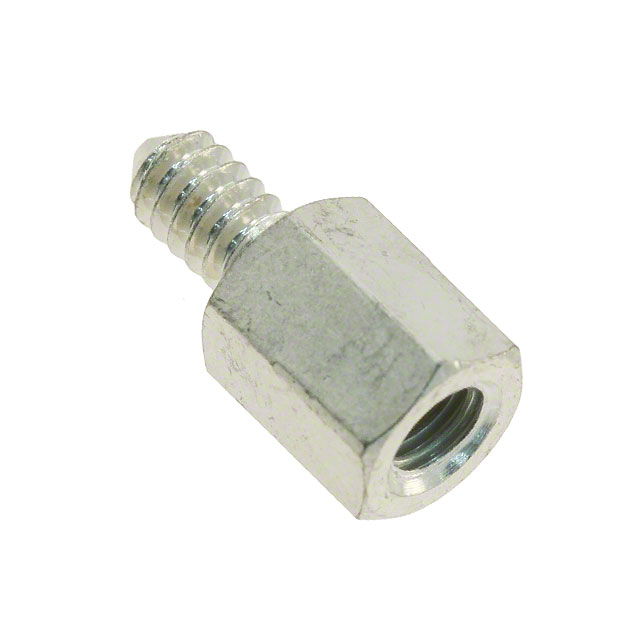

Jackscrew Socket For D-Sub Front Panel Mount Connectors

Technical documentation and resources
