Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2900389 | 290038 Series |
|---|---|---|
| Approval Agency | DNV, UKCA, CE | DNV, UKCA, CE |
| Load Current | 1 A | 1 - 3 A |
| Mounting Type | DIN Rail | DIN Rail |
| Operating Temperature [Max] | 60 °C | 60 °C |
| Operating Temperature [Min] | -25 °C | -25 °C |
| Output Type | DC | DC |
| Package / Case | Module | Module |
| Termination Style | Screw Terminal | Screw Terminal, Spring Terminal |
| Voltage - Input | 230 VAC | 5 - 230 VDC |
| Voltage - Load [Max] | 300 V | 33 - 300 V |
| Voltage - Load [Min] | 12 V | 3 - 12 V |
290038 Series

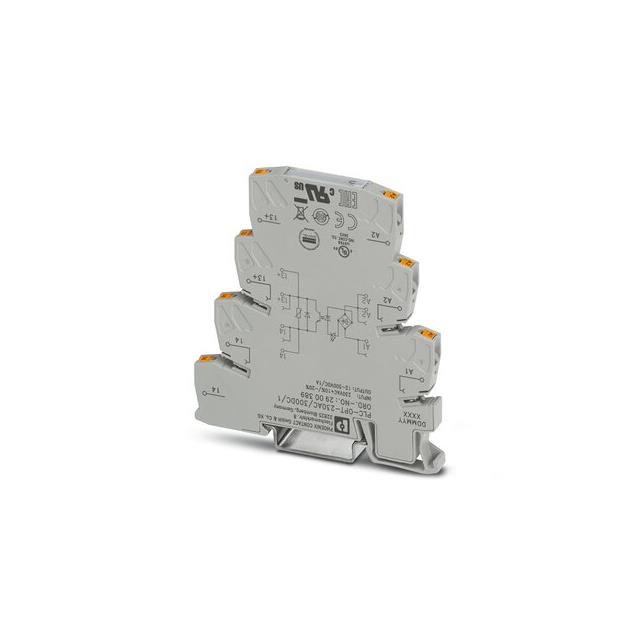

SSR RELAY SPST-NO 1A 12-300V
| Part | Package / Case | Approval Agency | Voltage - Input | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Load [Min] | Voltage - Load [Max] | Output Type | Load Current | Termination Style | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 2900384 | Module | CE, DNV, UKCA | 60 VDC | -25 °C | 60 °C | 12 V | 300 V | DC | 1 A | Screw Terminal | DIN Rail |
Phoenix Contact 2900385 | Module | CE, DNV, UKCA | 110 VDC | -25 °C | 60 °C | 12 V | 300 V | DC | 1 A | Screw Terminal | DIN Rail |
Phoenix Contact 2900389 | Module | CE, DNV, UKCA | 230 VAC | -25 °C | 60 °C | 12 V | 300 V | DC | 1 A | Screw Terminal | DIN Rail |
Phoenix Contact 2900387 | Module | CE, DNV, UKCA | 220 VDC | -25 °C | 60 °C | 12 V | 300 V | DC | 1 A | Screw Terminal | DIN Rail |
Phoenix Contact 2900380 | Module | CE, DNV, UKCA | 110 VDC | -25 °C | 60 °C | 3 V | 33 V | DC | 3 A | Screw Terminal | DIN Rail |
Phoenix Contact 2900381 | CE, UKCA | 5 VDC | -25 °C | 60 °C | 12 V | 300 V | DC | 1 A | Spring Terminal | DIN Rail | |
Phoenix Contact 2900388 | Module | CE, DNV, UKCA | 120 VAC | -25 °C | 60 °C | 12 V | 300 V | DC | 1 A | Screw Terminal | DIN Rail |
Phoenix Contact 2900383 | Module | CE, DNV, UKCA | 24 V | -25 °C | 60 °C | 12 V | 300 V | DC | 1 A | Screw Terminal | DIN Rail |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 10 | $ 76.87 | |
Description
General part information
290038 Series
Solid State SPST-NO (1 Form A) Module
