1555 WU001

Active

ALPHA WIRE

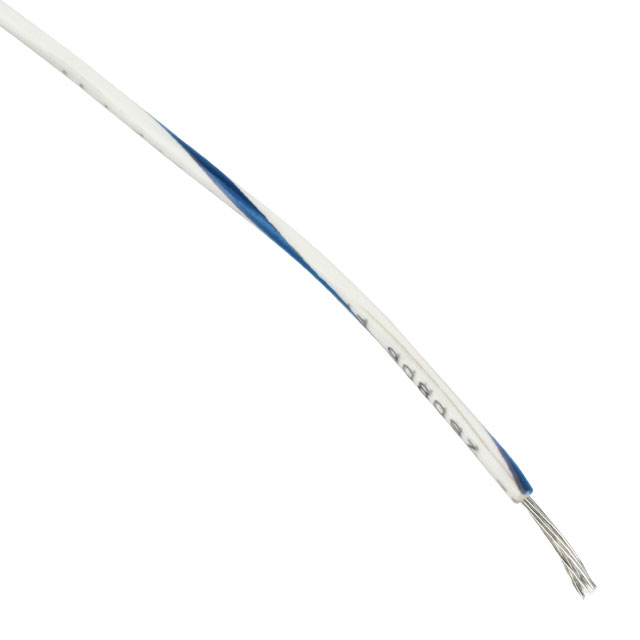

HOOKUP STRND 18AWG WHT/BLU 1000'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHook-Up Wire Catalog

1555 WU001

Active

ALPHA WIRE

HOOKUP STRND 18AWG WHT/BLU 1000'

Deep-Dive with AI

DocumentsHook-Up Wire Catalog

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 397.13
		3	$ 368.76
		5	$ 349.12
		10	$ 329.48
		25	$ 283.66

Description

General part information

1555 Series

18 AWG Hook-Up Wire 16/30 White, Blue Stripe 1000V 1000.0' (304.8m)

Documents

Technical documentation and resources

Hook-Up Wire Catalog

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1555 WU001	1555 Series

Cable Type	Hook-Up	Hook-Up
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand [custom]	16	16
Conductor Strand [custom]	30 AWG	30 AWG
Jacket (Insulation) Diameter [diameter]	2.01 mm	2.01 mm
Jacket (Insulation) Diameter [diameter]	0.079 in	0.079 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.016 in	0.016 in
Jacket (Insulation) Thickness	0.41 mm	0.41 mm
Jacket Color	White, Blue Stripe	White, Yellow Stripe, Orange, White, Violet Stripe, White, Black Stripe, White, Gray Stripe, White, Orange Stripe, Slate, White, Red Stripe, White, Brown Stripe, Red, White, Blue Stripe, Violet, Brown, Black, Yellow
Length	1000 ft	1000 ft
Length	304.8 m	304.8 m
Length	-	30.5 m
Length	-	100 ft
Operating Temperature [Max]	80 C	80 C
Operating Temperature [Min]	-40 °C	-40 °C
Qualification	MIL-W-76B Type MW	MIL-W-76B Type MW
Voltage	1000 V	1000 V
Wire Gauge	18 AWG	18 AWG

1555 Series

HOOKUP STRND 18AWG WHT/YEL 1000'

Part	Jacket (Insulation) Material	Voltage	Cable Type	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length	Length	Jacket Color	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Qualification	Wire Gauge	Conductor Material	Length [x]	Length [x]
ALPHA WIRE 1555 WY001	Poly-Vinyl Chloride (PVC)	1000 V	Hook-Up	-40 °C	80 C	16	30 AWG	2.01 mm	0.079 in	1000 ft	304.8 m	White, Yellow Stripe	0.016 in	0.41 mm	MIL-W-76B Type MW	18 AWG	Copper, Tinned
ALPHA WIRE 1555 OR001	Poly-Vinyl Chloride (PVC)	1000 V	Hook-Up	-40 °C	80 C	16	30 AWG	2.01 mm	0.079 in	1000 ft	304.8 m	Orange	0.016 in	0.41 mm	MIL-W-76B Type MW	18 AWG	Copper, Tinned
ALPHA WIRE 1555 WV005	Poly-Vinyl Chloride (PVC)	1000 V	Hook-Up	-40 °C	80 C	16	30 AWG	2.01 mm	0.079 in			White, Violet Stripe	0.016 in	0.41 mm	MIL-W-76B Type MW	18 AWG	Copper, Tinned	30.5 m	100 ft
ALPHA WIRE 1555 WB001	Poly-Vinyl Chloride (PVC)	1000 V	Hook-Up	-40 °C	80 C	16	30 AWG	2.01 mm	0.079 in	1000 ft	304.8 m	White, Black Stripe	0.016 in	0.41 mm	MIL-W-76B Type MW	18 AWG	Copper, Tinned
ALPHA WIRE 1555 WS005	Poly-Vinyl Chloride (PVC)	1000 V	Hook-Up	-40 °C	80 C	16	30 AWG	2.01 mm	0.079 in			White, Gray Stripe	0.016 in	0.41 mm	MIL-W-76B Type MW	18 AWG	Copper, Tinned	30.5 m	100 ft
ALPHA WIRE 1555 WO001	Poly-Vinyl Chloride (PVC)	1000 V	Hook-Up	-40 °C	80 C	16	30 AWG	2.01 mm	0.079 in	1000 ft	304.8 m	White, Orange Stripe	0.016 in	0.41 mm	MIL-W-76B Type MW	18 AWG	Copper, Tinned
ALPHA WIRE 1555 SL001	Poly-Vinyl Chloride (PVC)	1000 V	Hook-Up	-40 °C	80 C	16	30 AWG	2.01 mm	0.079 in	1000 ft	304.8 m	Slate	0.016 in	0.41 mm	MIL-W-76B Type MW	18 AWG	Copper, Tinned
ALPHA WIRE 1555 WR001	Poly-Vinyl Chloride (PVC)	1000 V	Hook-Up	-40 °C	80 C	16	30 AWG	2.01 mm	0.079 in	1000 ft	304.8 m	White, Red Stripe	0.016 in	0.41 mm	MIL-W-76B Type MW	18 AWG	Copper, Tinned
ALPHA WIRE 1555 WN001	Poly-Vinyl Chloride (PVC)	1000 V	Hook-Up	-40 °C	80 C	16	30 AWG	2.01 mm	0.079 in	1000 ft	304.8 m	White, Brown Stripe	0.016 in	0.41 mm	MIL-W-76B Type MW	18 AWG	Copper, Tinned
ALPHA WIRE 1555 RD005	Poly-Vinyl Chloride (PVC)	1000 V	Hook-Up	-40 °C	80 C	16	30 AWG	2.01 mm	0.079 in			Red	0.016 in	0.41 mm	MIL-W-76B Type MW	18 AWG	Copper, Tinned	30.5 m	100 ft
