C2536A.38.10
ActivePrysmian Group

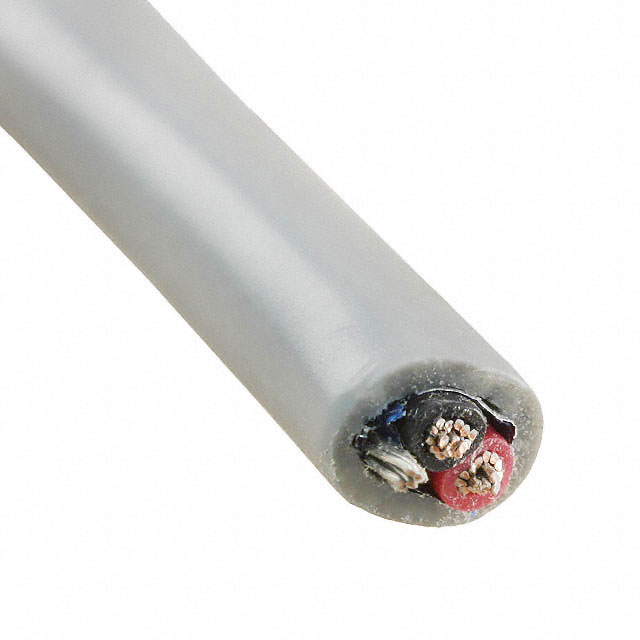

CABLE 2COND 16AWG GRAY SHLD
Deep-Dive with AI
Search across all available documentation for this part.
C2536A.38.10
ActivePrysmian Group
CABLE 2COND 16AWG GRAY SHLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C2536A.38.10 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Polyethylene (PE) |
| Conductor Material | Copper, Annealed Tinned |
| Conductor Strand [custom] | 19 |
| Conductor Strand [custom] | 0.0117 in |
| Features | Drain Wire |
| Jacket (Insulation) Diameter [diameter] | 0.307 in |
| Jacket (Insulation) Diameter [diameter] | 7.8 mm |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Gray |
| Length [x] | 500 ' |
| Length [x] | 152.4 m |
| Number of Conductors | 2 |
| Ratings | ASTM B-33 |
| Shield Coverage | 100 % |
| Shield Material | Flexfoil® |
| Shield Type | Foil |
| Usage | Control, Communication |
| Voltage | 600 V |
| Wire Gauge | 16 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 376.76 | |
| 2 | $ 358.30 | |||
| 3 | $ 347.85 | |||
| 5 | $ 335.05 | |||
| 7 | $ 326.83 | |||
| 10 | $ 318.30 | |||
| 25 | $ 297.20 | |||
Description
General part information
C2536A.38.10
2 Conductor Multi-Conductor Cable Gray 16 AWG Foil 500.0' (152.4m)
Documents
Technical documentation and resources
No documents available
