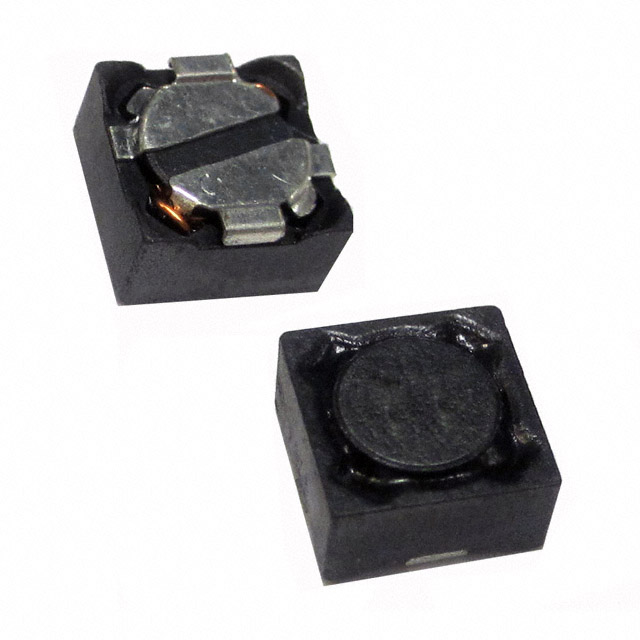

ASPI-0704S-2R2M-T
ActiveAbracon LLC
FIXED IND 2.2UH 5A 28 MOHM SMD
ASPI-0704S-2R2M-T
ActiveAbracon LLC
FIXED IND 2.2UH 5A 28 MOHM SMD
Description
General part information
ASPI-0704S-2R2M-T
2.2 µH Shielded Drum Core, Wirewound Inductor 5 A 28mOhm Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | ASPI-0704S-2R2M-T |
|---|---|
| Current Rating | 5 A |
| DC Resistance (DCR) | 28 mOhm |
| Height - Seated (Max) | 0.177 in |
| Inductance | 2.2 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.287 in |
| Size / Dimension Width | 0.287 in |
| Tolerance | 20 % |
| Type | Drum Core, Wirewound |
