BU941ZPFI

Active

STMicroelectronics

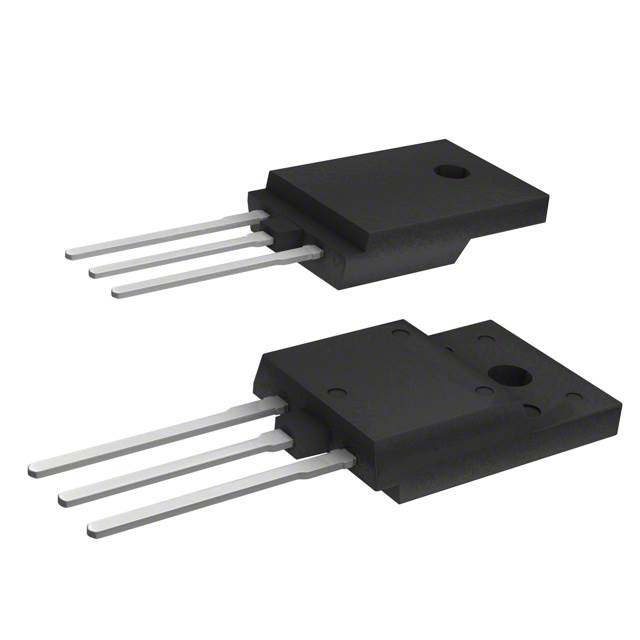

TRANS NPN DARL 350V 15A TO3PF

Search across all available documentation for this part.

Active

STMicroelectronics

TRANS NPN DARL 350V 15A TO3PF

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BU941ZPFI	BU941 Series

Current - Collector (Ic) (Max) [Max]	15 A	15 A
Current - Collector Cutoff (Max) [Max]	100 µA	100 µA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	300 hFE	300 hFE
Grade	Automotive	Automotive
Mounting Type	Through Hole	Through Hole, Chassis Mount
Operating Temperature	175 °C	175 - 200 °C
Package / Case	TO-3PF	TO-247-3, TO-220-3 Full Pack, TO-3, TO-204AA, TO-3PF
Power - Max [Max]	65 W	55 - 180 W
Supplier Device Package	TO-3PF	TO-247-3, TO-220AB, TO-3PF
Vce Saturation (Max) @ Ib, Ic	-	1.8 V
Vce Saturation (Max) @ Ib, Ic [Max]	2 V	2 V
Voltage - Collector Emitter Breakdown (Max)	-	400 V
Voltage - Collector Emitter Breakdown (Max) [Max]	350 V	350 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

TRANS NPN DARL 350V 15A TO247-3

Part	Current - Collector Cutoff (Max) [Max]	Supplier Device Package	Operating Temperature	Mounting Type	Package / Case	Current - Collector (Ic) (Max) [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	Power - Max [Max]	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Vce Saturation (Max) @ Ib, Ic [Max]	Vce Saturation (Max) @ Ib, Ic	Voltage - Collector Emitter Breakdown (Max)	Grade
STMicroelectronics BU941ZP	100 µA	TO-247-3	175 °C	Through Hole	TO-247-3	15 A	350 V	155 W	300 hFE	2 V
STMicroelectronics BU941ZTFP	100 µA	TO-220AB	175 °C	Through Hole	TO-220-3 Full Pack	15 A	350 V	55 W	300 hFE		1.8 V
STMicroelectronics BU941	100 µA		200 °C	Chassis Mount	TO-204AA, TO-3	15 A		180 W	300 hFE	2 V		400 V
STMicroelectronics BU941ZPFI	100 µA	TO-3PF	175 °C	Through Hole	TO-3PF	15 A	350 V	65 W	300 hFE	2 V			Automotive

General part information

Bipolar (BJT) Transistor NPN - Darlington 350 V 15 A 65 W Through Hole TO-3PF
