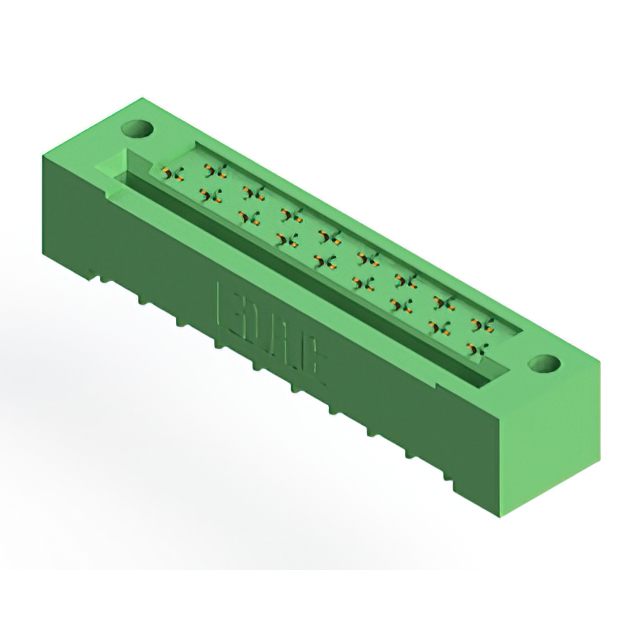

Specification	408-017-523-112

Card Thickness	0.062 in
Card Type	Non Specified, Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Ąin
Contact Material	Copper Alloy
Flange Feature	Flush Mount, Unthreaded, Top Opening
Flange Feature Diameter	0.128 in
Gender	Female
Material - Insulation	Diallyl Phthalate, DAP
Mounting Type	Panel Mount, Through Hole
Number of Positions	17
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-65 °C
Pitch	5.08 mm
Termination	Solder
Termination Rows	2 rows

408-017 Series

Part	Material - Insulation	Termination Rows	Operating Temperature (Max)	Operating Temperature (Min)	Contact Finish	Color	Card Thickness	Gender	Contact Material	Number of Rows	Termination	Flange Feature Diameter	Flange Feature	Pitch	Contact Finish Thickness	Card Type	Number of Positions	Mounting Type	Features
EDAC Inc. 408-017-502-112	DAP Diallyl Phthalate	2 rows	125 °C	-65 °C	Gold	Green	0.062 in	Female	Copper Alloy	2	Solder	0.128 in	Flush Mount Top Opening Unthreaded	5.08 mm	10 Ąin	Dual Edge Non Specified	17	Panel Mount Through Hole
EDAC Inc. 408-017-540-222	DAP Diallyl Phthalate	2 rows	125 °C	-65 °C	Gold	Green	0.093 in	Female	Copper Alloy	2	Wire Wrap	0.128 in	Flush Mount Top Opening Unthreaded	5.08 mm	10 Ąin	Dual Edge Non Specified	17	Panel Mount Through Hole	Card Guides
EDAC Inc. 408-017-525-212	DAP Diallyl Phthalate	2 rows	125 °C	-65 °C	Gold	Green	0.062 in	Female	Copper Alloy	2	Solder	0.128 in	Flush Mount Top Opening Unthreaded	5.08 mm	10 Ąin	Dual Edge Non Specified	17	Panel Mount Through Hole	Card Guides
EDAC Inc. 408-017-502-222	DAP Diallyl Phthalate	2 rows	125 °C	-65 °C	Gold	Green	0.093 in	Female	Copper Alloy	2	Solder	0.128 in	Flush Mount Top Opening Unthreaded	5.08 mm	10 Ąin	Dual Edge Non Specified	17	Panel Mount Through Hole	Card Guides
EDAC Inc. 408-017-542-112	DAP Diallyl Phthalate	2 rows	125 °C	-65 °C	Gold	Green	0.062 in	Female	Copper Alloy	2	Wire Wrap	0.128 in	Flush Mount Top Opening Unthreaded	5.08 mm	10 Ąin	Dual Edge Non Specified	17	Panel Mount Through Hole
EDAC Inc. 408-017-541-112	DAP Diallyl Phthalate	2 rows	125 °C	-65 °C	Gold	Green	0.062 in	Female	Copper Alloy	2	Wire Wrap	0.128 in	Flush Mount Top Opening Unthreaded	5.08 mm	10 Ąin	Dual Edge Non Specified	17	Panel Mount Through Hole
EDAC Inc. 408-017-502-212	DAP Diallyl Phthalate	2 rows	125 °C	-65 °C	Gold	Green	0.062 in	Female	Copper Alloy	2	Solder	0.128 in	Flush Mount Top Opening Unthreaded	5.08 mm	10 Ąin	Dual Edge Non Specified	17	Panel Mount Through Hole	Card Guides
EDAC Inc. 408-017-520-212	DAP Diallyl Phthalate	2 rows	125 °C	-65 °C	Gold	Green	0.062 in	Female	Copper Alloy	2	Solder	0.128 in	Flush Mount Top Opening Unthreaded	5.08 mm	10 Ąin	Dual Edge Non Specified	17	Panel Mount Through Hole	Card Guides
EDAC Inc. 408-017-522-112	DAP Diallyl Phthalate	2 rows	125 °C	-65 °C	Gold	Green	0.062 in	Female	Copper Alloy	2	Solder	0.128 in	Flush Mount Top Opening Unthreaded	5.08 mm	10 Ąin	Dual Edge Non Specified	17	Panel Mount Through Hole
EDAC Inc. 408-017-520-222	DAP Diallyl Phthalate	2 rows	125 °C	-65 °C	Gold	Green	0.093 in	Female	Copper Alloy	2	Solder	0.128 in	Flush Mount Top Opening Unthreaded	5.08 mm	10 Ąin	Dual Edge Non Specified	17	Panel Mount Through Hole	Card Guides
