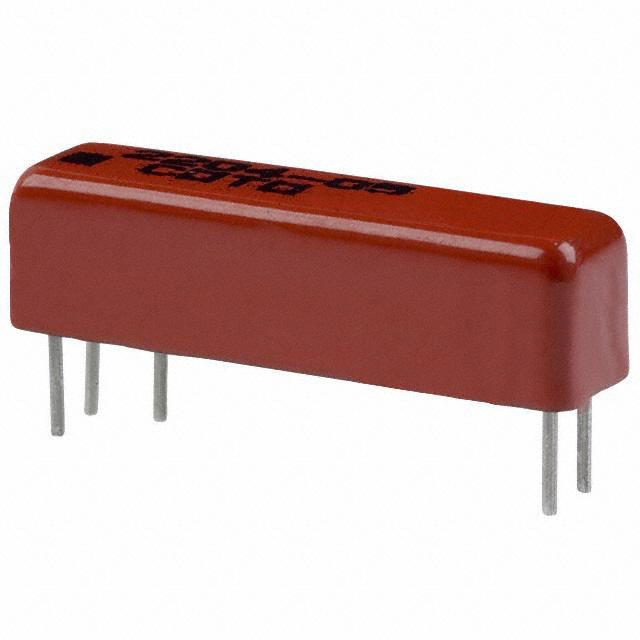

2211-12-301
ActiveCoto Technology
RELAY REED SPDT 250MA 12V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2211-12-301
ActiveCoto Technology
RELAY REED SPDT 250MA 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2211-12-301 |
|---|---|
| Coil Resistance | 1.5 kOhms |
| Coil Type | Non Latching |
| Coil Voltage | 12 VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 250 mA |
| Mounting Type | Through Hole |
| Must Operate Voltage | 9 VDC |
| Must Release Voltage | 1 VDC |
| Operate Time | 1 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -20 C |
| Release Time | 2 ms |
| Seal Rating | Sealed - Hermetically |
| Switching Voltage | 100 VAC, 100 VDC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 24.24 | |
| 10 | $ 23.03 | |||
| 29 | $ 21.82 | |||
| 58 | $ 20.60 | |||
| 116 | $ 19.39 | |||
| 261 | $ 18.18 | |||
| 522 | $ 16.97 | |||
Description
General part information
2211 Series
RELAY REED SPDT 250MA 12V
