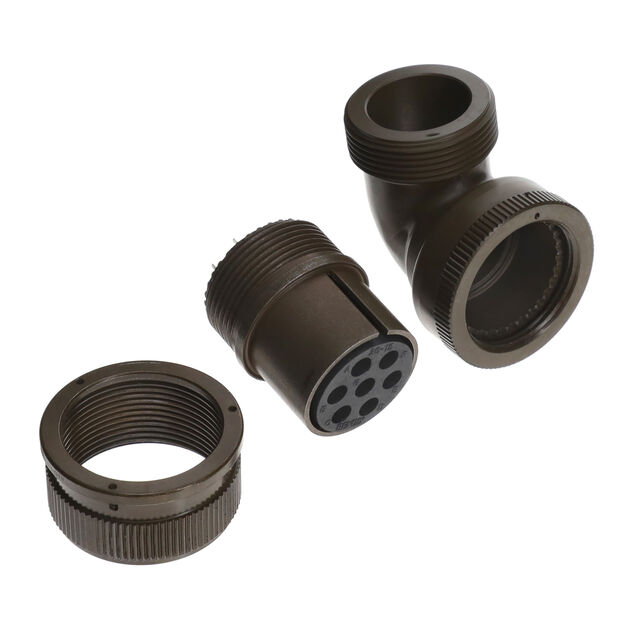

MS3108A20-15S
ActiveAmphenol Industrial Operations
MIL-5015 MS/AC THREADED PLUG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MS3108A20-15S
ActiveAmphenol Industrial Operations
MIL-5015 MS/AC THREADED PLUG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MS3108A20-15S | MS3108A20 Series |
|---|---|---|
| - | - | |
| Applications | Military, Marine | Military, Marine |
| Color | Olive Drab | Olive Drab |
| Connector Type | Female Sockets, Plug | Female Sockets, Plug, Male Pins |
| Contact Finish - Mating | Silver | Silver |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 22 A | 13 - 23 A |
| Features | - | Coupling Nut |
| Grade | Military | Military |
| Ingress Protection | Environment Resistant | Environment Resistant |
| Insert Material | Neoprene | Neoprene |
| Mounting Type | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle |
| Number of Positions | 7 | 4 - 14 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | N | N, W |
| Primary Material | Metal | Metal |
| Qualification | MIL-DTL-5015 | MIL-DTL-5015, MIL-5015 |
| Shell Finish | Olive Drab Chromate over Cadmium | Olive Drab Chromate over Cadmium |
| Shell Material | Aluminum Alloy | Aluminum Alloy |
| Shell Size - Insert | - | 20-4 |
| Shell Size - Insert [Max] | 15 | 15 - 29 |
| Shell Size - Insert [Min] | 20 | 20 |
| Shielding | Unshielded | Unshielded |
| Voltage Rating | - | 900 - 1250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 69.33 | |
| 10 | $ 63.62 | |||
| 25 | $ 61.18 | |||
| 50 | $ 59.14 | |||
| 100 | $ 55.87 | |||
| Bulk | 1 | $ 92.80 | ||
| 10 | $ 80.43 | |||
| 25 | $ 70.97 | |||
| 50 | $ 63.50 | |||
| 100 | $ 55.68 | |||
MS3108A20 Series
MIL-5015 MS/AC THREADED PLUG
| Part | Primary Material | Contact Finish - Mating | Contact Material | Applications | Ingress Protection | Mounting Type | Insert Material | Grade | Shielding | Shell Finish | Shell Material | Qualification | Voltage Rating | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Orientation | Number of Positions | Current Rating (Amps) | Color | Shell Size - Insert | Features | Shell Size - Insert [Max] | Shell Size - Insert [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations MS3108A20-4S | Metal | Silver | Copper Alloy | Marine, Military | Environment Resistant | Free Hanging (In-Line), Right Angle | Neoprene | Military | Unshielded | Olive Drab Chromate over Cadmium | Aluminum Alloy | MIL-DTL-5015 | 900 VAC, 1250 VDC | Female Sockets, Plug | -55 °C | 125 °C | N | 4 | 23 A | Olive Drab | 20-4 | |||
Amphenol Industrial Operations MS3108A20-29P | Metal | Silver | Copper Alloy | Marine, Military | Environment Resistant | Free Hanging (In-Line), Right Angle | Neoprene | Military | Unshielded | Olive Drab Chromate over Cadmium | Aluminum Alloy | MIL-DTL-5015 | Male Pins, Plug | -55 °C | 125 °C | N | 13 A | Olive Drab | Coupling Nut | 29 | 20 | |||
Amphenol Industrial Operations MS3108A20-29SW | Metal | Silver | Copper Alloy | Marine, Military | Free Hanging (In-Line), Right Angle | Neoprene | Unshielded | Olive Drab Chromate over Cadmium | Aluminum Alloy | MIL-5015 | Female Sockets, Plug | -55 °C | 125 °C | W | Olive Drab | Coupling Nut | 29 | 20 | ||||||
Amphenol Industrial Operations MS3108A20-12P | ||||||||||||||||||||||||
Amphenol Industrial Operations MS3108A20-4P | Metal | Silver | Copper Alloy | Marine, Military | Environment Resistant | Free Hanging (In-Line), Right Angle | Neoprene | Military | Unshielded | Olive Drab Chromate over Cadmium | Aluminum Alloy | MIL-DTL-5015 | 900 VAC, 1250 VDC | Male Pins, Plug | -55 °C | 125 °C | N | 4 | 23 A | Olive Drab | 20-4 | |||
Amphenol Industrial Operations MS3108A20-15S | Metal | Silver | Copper Alloy | Marine, Military | Environment Resistant | Free Hanging (In-Line), Right Angle | Neoprene | Military | Unshielded | Olive Drab Chromate over Cadmium | Aluminum Alloy | MIL-DTL-5015 | Female Sockets, Plug | -55 °C | 125 °C | N | 7 | 22 A | Olive Drab | 15 | 20 | |||
Amphenol Industrial Operations MS3108A20-27S | Metal | Silver | Copper Alloy | Marine, Military | Environment Resistant | Free Hanging (In-Line), Right Angle | Neoprene | Military | Unshielded | Olive Drab Chromate over Cadmium | Aluminum Alloy | MIL-DTL-5015 | Female Sockets, Plug | -55 °C | 125 °C | N | 14 | 13 A | Olive Drab | 27 | 20 |
Description
General part information
MS3108A20 Series
7 Position Circular Connector Plug, Female Sockets Solder Cup
