4N33-X001

Active

Vishay Semiconductor Opto Division

OPTOISO 5.3KV DARL W/BASE 6DIP

Search across all available documentation for this part.

Active

Vishay Semiconductor Opto Division

OPTOISO 5.3KV DARL W/BASE 6DIP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	2000	$ 0.22

General part information

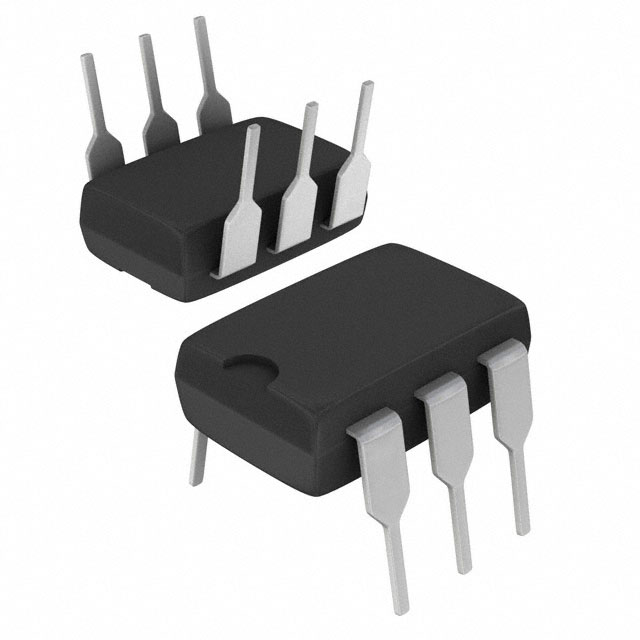

Optoisolator Darlington with Base Output 5300Vrms 1 Channel 6-DIP

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	4N33-X001	4N33 Series

Current - DC Forward (If) (Max) [Max]	60 mA	60 mA
Current - Output / Channel	100 mA	100 mA
Current Transfer Ratio (Min) [Min]	500 %	500 %
Input Type	DC	DC
Mounting Type	Through Hole	Surface Mount, Through Hole
Number of Channels	1	1
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-55 °C	-55 °C
Output Type	Darlington with Base	Darlington with Base
Package / Case	6-DIP	6-SMD, Gull Wing, 6-DIP
Package / Case	0.3 in	0.3 in
Package / Case	7.62 mm	7.62 mm
Supplier Device Package	6-DIP	6-SMD, 6-DIP
Turn On / Turn Off Time (Typ)	5 µs	5 µs
Turn On / Turn Off Time (Typ) [Max]	100 µs	100 µs
Vce Saturation (Max) [Max]	1 V	1 V
Voltage - Forward (Vf) (Typ)	1.25 V	1.25 V
Voltage - Isolation	5300 Vrms	5300 Vrms
Voltage - Output (Max) [Max]	30 V	30 V

OPTOISO 5.3KV DARL W/BASE 6SMD

Part	Supplier Device Package	Current - DC Forward (If) (Max) [Max]	Current Transfer Ratio (Min) [Min]	Output Type	Package / Case	Mounting Type	Voltage - Forward (Vf) (Typ)	Vce Saturation (Max) [Max]	Current - Output / Channel	Number of Channels	Turn On / Turn Off Time (Typ)	Turn On / Turn Off Time (Typ) [Max]	Voltage - Output (Max) [Max]	Voltage - Isolation	Operating Temperature [Max]	Operating Temperature [Min]	Input Type	Package / Case	Package / Case
Vishay Semiconductor Opto Division 4N33-X009	6-SMD	60 mA	500 %	Darlington with Base	6-SMD, Gull Wing	Surface Mount	1.25 V	1 V	100 mA	1	5 µs	100 µs	30 V	5300 Vrms	100 °C	-55 °C	DC
Vishay Semiconductor Opto Division 4N33-X007T	6-SMD	60 mA	500 %	Darlington with Base	6-SMD, Gull Wing	Surface Mount	1.25 V	1 V	100 mA	1	5 µs	100 µs	30 V	5300 Vrms	100 °C	-55 °C	DC
Vishay Semiconductor Opto Division 4N33-X001	6-DIP	60 mA	500 %	Darlington with Base	6-DIP	Through Hole	1.25 V	1 V	100 mA	1	5 µs	100 µs	30 V	5300 Vrms	100 °C	-55 °C	DC	0.3 in	7.62 mm
Vishay Semiconductor Opto Division 4N33	6-DIP	60 mA	500 %	Darlington with Base	6-DIP	Through Hole	1.25 V	1 V	100 mA	1	5 µs	100 µs	30 V	5300 Vrms	100 °C	-55 °C	DC	0.3 in	7.62 mm
Vishay Semiconductor Opto Division 4N33-X007	6-SMD	60 mA	500 %	Darlington with Base	6-SMD, Gull Wing	Surface Mount	1.25 V	1 V	100 mA	1	5 µs	100 µs	30 V	5300 Vrms	100 °C	-55 °C	DC
