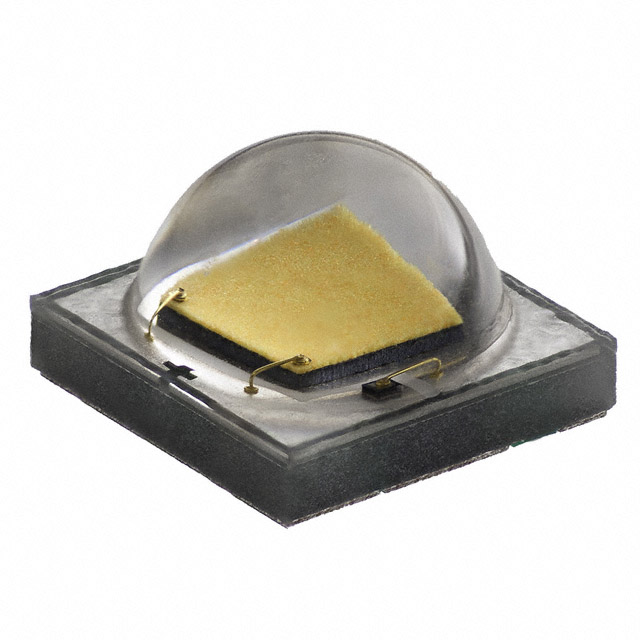

XPGBWT-L1-R250-00G51

Active

Cree LED

LED XLAMP COOL WHITE 6200K 2SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

XPGBWT-L1-R250-00G51

Active

Cree LED

LED XLAMP COOL WHITE 6200K 2SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	XPGBWT-L1-R250-00G51	XPGBWT Series

CCT (K)	-	2700 - 7000 K
Color	Cool, White	White, Warm, Cool, Neutral
CRI (Color Rendering Index)	70	70 - 95
Current - Max [Max]	1.5 A	1.5 - 2 A
Current - Test	350 mA	350 mA
Flux @ 25°C, Current - Test	-	118 - 198 lm
Flux @ 85°C, Current - Test	-	172lm ~ 180lm
Flux @ 85°C, Current - Test	-	71 - 184 lm
Flux @ 85°C, Current - Test [Max]	139 lm	81 - 156 lm
Flux @ 85°C, Current - Test [Min]	130 lm	74 - 148 lm
Height - Seated (Max) [Max] [z]	2.39 mm	2.39 mm
Height - Seated (Max) [Max] [z]	0.094 "	0.094 "
Lumens/Watt @ Current - Test	142 lm/W	75 - 210 lm/W
Mounting Type	Surface Mount	Surface Mount
Package / Case	3535 Metric	3535 Metric
Package / Case	1414	1414
Size / Dimension [x]	3.45 mm	3.45 mm
Size / Dimension [x]	0.136 in	0.136 in
Size / Dimension [y]	0.136 in	0.136 in
Size / Dimension [y]	3.45 mm	3.45 mm
Supplier Device Package	-	1414
Thermal Resistance of Package	-	3 °C/W
Thermal Resistance of Package [custom]	4 °C/W	4 °C/W
Viewing Angle	115 °	115 - 125 °
Voltage - Forward (Vf) (Typ)	2.72 V	2.7 - 2.72 V

XPGBWT Series

LED XLAMP WARM WHT 2700K 1414

...

Part	Current - Test	CCT (K)	Supplier Device Package	Color	Lumens/Watt @ Current - Test	Thermal Resistance of Package [diameter]	Package / Case	Package / Case	CRI (Color Rendering Index)	Flux @ 85°C, Current - Test [Max]	Flux @ 85°C, Current - Test [Min]	Voltage - Forward (Vf) (Typ)	Viewing Angle	Mounting Type	Current - Max [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Flux @ 85°C, Current - Test	Flux @ 85°C, Current - Test	Flux @ 25°C, Current - Test	Thermal Resistance of Package [custom]
Cree LED XPGBWT-HE-0000-00GE8	350 mA	2700 K	1414	Warm, White	143 lm/W	3 °C/W	3535 Metric	1414	80	139 lm	130 lm	2.7 V	125 °	Surface Mount	2 A	3.45 mm	0.136 in	0.136 in	3.45 mm	2.39 mm	0.094 "
Cree LED XPGBWT-BE-0000-00M50	350 mA		1414	Cool, White	186 lm/W	3 °C/W	3535 Metric	1414	70			2.7 V	125 °	Surface Mount	2 A	3.45 mm	0.136 in	0.136 in	3.45 mm	2.39 mm	0.094 "	172lm ~ 180lm	176 lm
Cree LED XPGBWT-HE-0000-00H8G	350 mA		1414	White		3 °C/W	3535 Metric	1414	80	148 lm	139 lm	2.7 V	125 °	Surface Mount	2 A	3.45 mm	0.136 in	0.136 in	3.45 mm	2.39 mm	0.094 "		144 lm	153 lm
Cree LED XPGBWT-UE-0000-00FE5	350 mA	4000 K	1414	Neutral, White	133 lm/W	3 °C/W	3535 Metric	1414	90			2.7 V	125 °	Surface Mount	2 A	3.45 mm	0.136 in	0.136 in	3.45 mm	2.39 mm	0.094 "
Cree LED XPGBWT-L1-R250-00CZ8	350 mA	2700 K		Warm, White	109 lm/W		3535 Metric	1414	80	107 lm	100 lm	2.72 V	115 °	Surface Mount	1.5 A	3.45 mm	0.136 in	0.136 in	3.45 mm	2.39 mm	0.094 "		104 lm		4 °C/W
Cree LED XPGBWT-01-0000-00HC4	350 mA	4100 K		Neutral, White	152 lm/W		3535 Metric	1414	70	148 lm	139 lm	2.72 V	115 °	Surface Mount	1.5 A	3.45 mm	0.136 in	0.136 in	3.45 mm	2.39 mm	0.094 "		144 lm		4 °C/W
Cree LED XPGBWT-UE-0000-00F2G	350 mA		1414	White	142 lm/W	3 °C/W	3535 Metric	1414	90			2.7 V	125 °	Surface Mount	2 A	3.45 mm	0.136 in	0.136 in	3.45 mm	2.39 mm	0.094 "			134 lm
Cree LED XPGBWT-UE-0000-00F3E	350 mA		1414	White	142 lm/W	3 °C/W	3535 Metric	1414	90			2.7 V	125 °	Surface Mount	2 A	3.45 mm	0.136 in	0.136 in	3.45 mm	2.39 mm	0.094 "			134 lm
Cree LED XPGBWT-UE-0000-00F5E	350 mA		1414	White	142 lm/W	3 °C/W	3535 Metric	1414	90			2.7 V	125 °	Surface Mount	2 A	3.45 mm	0.136 in	0.136 in	3.45 mm	2.39 mm	0.094 "			134 lm
Cree LED XPGBWT-P1-0000-009E8	350 mA	2700 K		Warm, White	88 lm/W		3535 Metric	1414	85			2.72 V	115 °	Surface Mount	1.5 A	3.45 mm	0.136 in	0.136 in	3.45 mm	2.39 mm	0.094 "		84		4 °C/W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.44
		10	$ 1.37
		50	$ 1.33
		100	$ 1.22
	Digi-Reel®	1	$ 1.44
		10	$ 1.37
		50	$ 1.33
		100	$ 1.22
	Tape & Reel (TR)	250	$ 1.11
		500	$ 1.04
		1250	$ 0.96

Description

General part information

XPGBWT Series

LED Lighting XLamp® XP-G2 White, Cool 6200K 2.72V 350mA 115° 1414 (3535 Metric)
