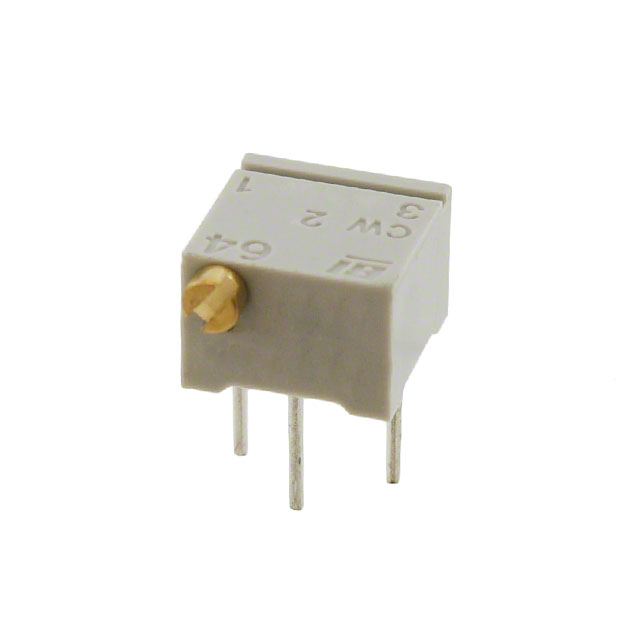

64PR1KLF
ActiveTT Electronics/BI
TRIMMER 1K OHM 0.25W PC PIN SIDE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
64PR1KLF
ActiveTT Electronics/BI
TRIMMER 1K OHM 0.25W PC PIN SIDE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 64PR1KLF | 64PR Series |
|---|---|---|
| Adjustment Type | Side Adjustment | Top Adjustment, Side Adjustment |
| Mounting Type | Through Hole | Through Hole |
| Number of Turns | 12 | 12 |
| Power (Watts) | 0.25 W | 0.25 W |
| Power (Watts) | 250 mW | 250 mW |
| Resistance | 1000 Ohms | 20 - 200000 Ohms |
| Resistive Material | Cermet | Cermet |
| Size / Dimension [x] | 6.35 mm | 6.35 mm |
| Size / Dimension [x] | 0.25 " | 0.25 " |
| Size / Dimension [y] | 0.25 in | 0.25 in |
| Size / Dimension [y] | 6.35 mm | 6.35 mm |
| Temperature Coefficient | 100 ppm/°C | 100 ppm/°C |
| Termination Style | PC Pins | PC Pins |
| Tolerance | 10 % | 10 % |
64PR Series
TRIMMER 50 OHM 0.25W PC PIN TOP
| Part | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Adjustment Type | Power (Watts) | Power (Watts) | Tolerance | Termination Style | Number of Turns | Resistive Material | Mounting Type | Temperature Coefficient | Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TT Electronics/BI 64PR50LF | 0.25 in | 6.35 mm | 6.35 mm | 0.25 " | Top Adjustment | 0.25 W | 250 mW | 10 % | PC Pins | 12 | Cermet | Through Hole | 100 ppm/°C | 50 Ohms |
TT Electronics/BI 64PR100LF | 0.25 in | 6.35 mm | 6.35 mm | 0.25 " | Top Adjustment | 0.25 W | 250 mW | 10 % | PC Pins | 12 | Cermet | Through Hole | 100 ppm/°C | 100 Ohms |
TT Electronics/BI 64PR250KLF | 0.25 in | 6.35 mm | 6.35 mm | 0.25 " | Top Adjustment | 0.25 W | 250 mW | 10 % | PC Pins | 12 | Cermet | Through Hole | 100 ppm/°C | 250 kOhms |
TT Electronics/BI 64PR20LF | 0.25 in | 6.35 mm | 6.35 mm | 0.25 " | Top Adjustment | 0.25 W | 250 mW | 10 % | PC Pins | 12 | Cermet | Through Hole | 100 ppm/°C | 20 Ohms |
TT Electronics/BI 64PR500KLF | 0.25 in | 6.35 mm | 6.35 mm | 0.25 " | Top Adjustment | 0.25 W | 250 mW | 10 % | PC Pins | 12 | Cermet | Through Hole | 100 ppm/°C | |
TT Electronics/BI 64PR200LF | 0.25 in | 6.35 mm | 6.35 mm | 0.25 " | Top Adjustment | 0.25 W | 250 mW | 10 % | PC Pins | 12 | Cermet | Through Hole | 100 ppm/°C | 200 Ohms |
TT Electronics/BI 64PR10KLF | 0.25 in | 6.35 mm | 6.35 mm | 0.25 " | Side Adjustment | 0.25 W | 250 mW | 10 % | PC Pins | 12 | Cermet | Through Hole | 100 ppm/°C | 10000 Ohms |
TT Electronics/BI 64PR1KLF | 0.25 in | 6.35 mm | 6.35 mm | 0.25 " | Side Adjustment | 0.25 W | 250 mW | 10 % | PC Pins | 12 | Cermet | Through Hole | 100 ppm/°C | 1000 Ohms |
TT Electronics/BI 64PR500LF | 0.25 in | 6.35 mm | 6.35 mm | 0.25 " | Top Adjustment | 0.25 W | 250 mW | 10 % | PC Pins | 12 | Cermet | Through Hole | 100 ppm/°C | 500 Ohms |
TT Electronics/BI 64PR200KLF | 0.25 in | 6.35 mm | 6.35 mm | 0.25 " | Top Adjustment | 0.25 W | 250 mW | 10 % | PC Pins | 12 | Cermet | Through Hole | 100 ppm/°C | 200000 Ohms |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 3.07 | |
| 10 | $ 2.69 | |||
| 25 | $ 2.42 | |||
| 50 | $ 2.32 | |||
| 100 | $ 2.23 | |||
| 250 | $ 2.14 | |||
| 500 | $ 1.77 | |||
| 1000 | $ 1.67 | |||
| 5000 | $ 1.39 | |||
Description
General part information
64PR Series
1 kOhms 0.25W, 1/4W PC Pins Through Hole Trimmer Potentiometer Cermet 12.0 Turn Side Adjustment
