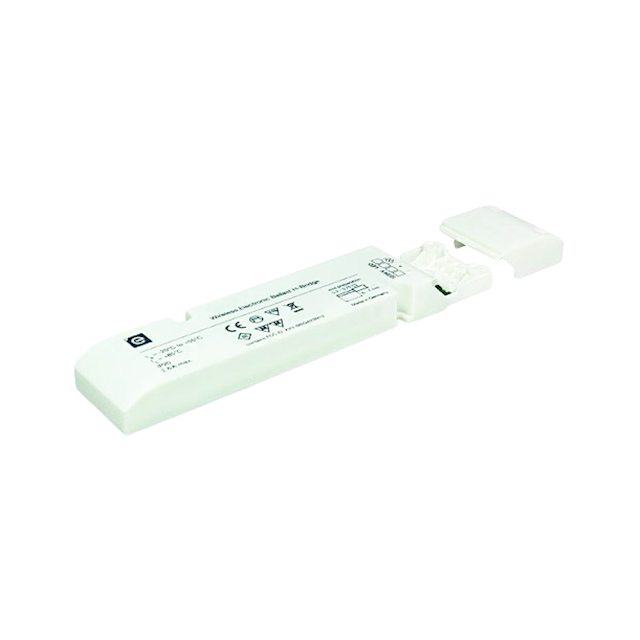

600058

Obsolete

Dresden Elektronik

WIRELESS ELECTRONIC BALLAST FLS-

Search across all available documentation for this part.

Obsolete

Dresden Elektronik

WIRELESS ELECTRONIC BALLAST FLS-

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	600058	- Series

Applications	General Purpose, IoT Finished Device	General Purpose, IoT Finished Device
Data Rate (Max)	-	2 Mbps
Features	-	Case
Frequency	2.4 GHz	2.4 GHz
Function	Wireless Lighting Controller	Wireless Lighting Controller, Transceiver
Interface	-	USB
Modulation or Protocol	802.15.4	802.15.4, 802.15.4 Zigbee™, 6LoWPAN, ISM, ZigBee™
Power - Output	-	3 dBm
Sensitivity	-	-101 dBm
Voltage - Supply	-	3.3 - 5 V
Voltage - Supply	-	USB
Voltage - Supply [Max]	24 V	24 - 265 VAC
Voltage - Supply [Min]	12 V	12 - 85 VAC

WIRELESS ELECTRONIC BALLAST FLS-

Part	Frequency	Modulation or Protocol	Applications	Function	Voltage - Supply [Max]	Voltage - Supply [Min]	Power - Output	Features	Data Rate (Max)	Sensitivity	Interface	Voltage - Supply	Voltage - Supply
Dresden Elektronik 600078	2.4 GHz	802.15.4	General Purpose, IoT Finished Device	Wireless Lighting Controller	265 VAC	85 VAC
Dresden Elektronik 31075	2.4 GHz	6LoWPAN, 802.15.4 Zigbee™, ISM	General Purpose	Transceiver			3 dBm	Case	2 Mbps	-101 dBm	USB	5 V	USB
Dresden Elektronik 600090	2.4 GHz	ZigBee™	General Purpose, IoT Finished Device	Wireless Lighting Controller							USB	3.3 V
Dresden Elektronik 600058	2.4 GHz	802.15.4	General Purpose, IoT Finished Device	Wireless Lighting Controller	24 V	12 V
Dresden Elektronik 600091	2.4 GHz	ZigBee™	General Purpose, IoT Finished Device	Wireless Lighting Controller	265 VAC	85 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

RF Wireless Lighting Controller 2.4GHz 802.15.4
