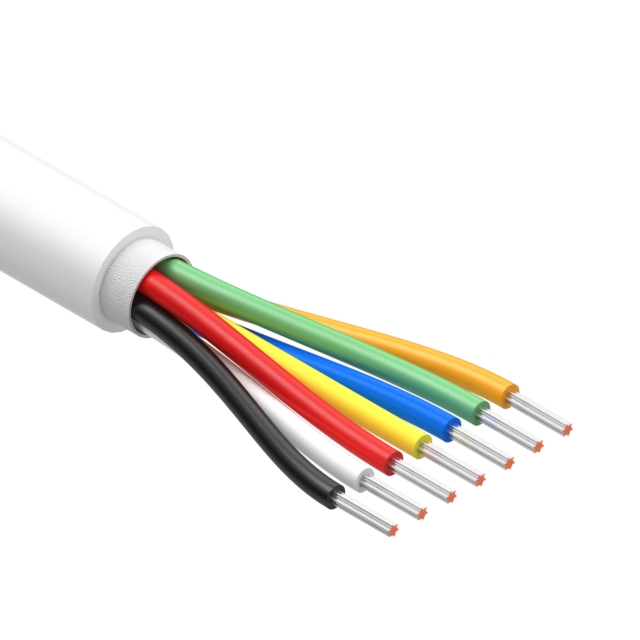

Specification	30-02821

Cable Type	Conductor, Multi
Conductor Insulation	High Density Polyethylene (HDPE)
Conductor Material	Tinned, Copper
Conductor Strand Count	19
Conductor Strand Diameter	0.002 in
Features	Biological Compatibility
Jacket (Insulation) Diameter	0.11 in
Jacket (Insulation) Material	Thermoplastic Polyurethane (TPU)
Jacket (Insulation) Thickness	0.0197 in
Jacket Color	White
Length	502 ft
Number of Conductors	7
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-40 °C
Ratings	10993, ISO
Voltage	150 V
Wire Gauge	32 AWG
