15523.2

Active

Conta-Clip, Inc.

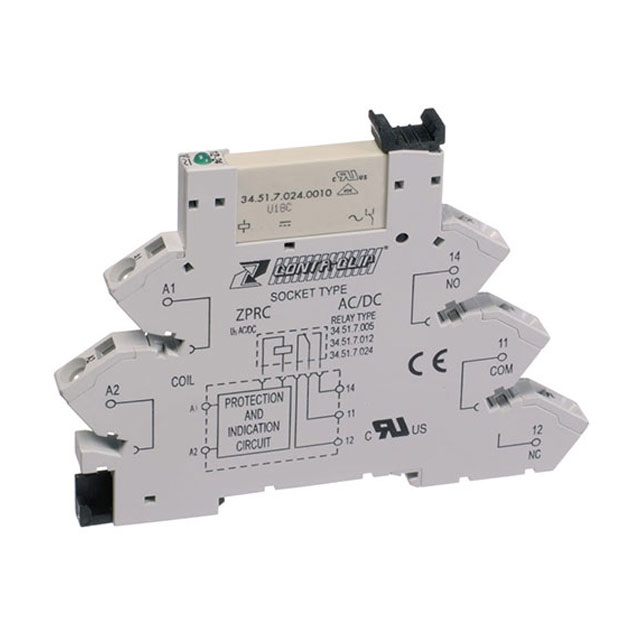

RELAY GEN PURPOSE SPDT 6A 230V

Search across all available documentation for this part.

Active

Conta-Clip, Inc.

RELAY GEN PURPOSE SPDT 6A 230V

Technical Specifications

Parameters and characteristics for this part

RELAY GEN PURPOSE SPDT 6A 230V

Part	Release Time	Must Release Voltage	Termination Style	Coil Type	Mounting Type	Coil Voltage	Load - Max Switching [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Contact Rating (Current)	Must Operate Voltage	Contact Form	Approval Agency	Contact Material	Switching Voltage [Max]	Operate Time	Relay Type
Conta-Clip, Inc. 15523.2	6 ms	23 VAC	Spring Terminal	Non Latching	DIN Rail	230 VAC	2400 VA	85 °C	-40 °C	6 A	184 VAC	SPDT (1 Form C)	CSA, UL	Silver Nickel (AgNi)	400 VAC	5 ms	General Purpose

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 29.69

General part information

General Purpose Relay SPDT (1 Form C) 230VAC/DC Coil DIN Rail
