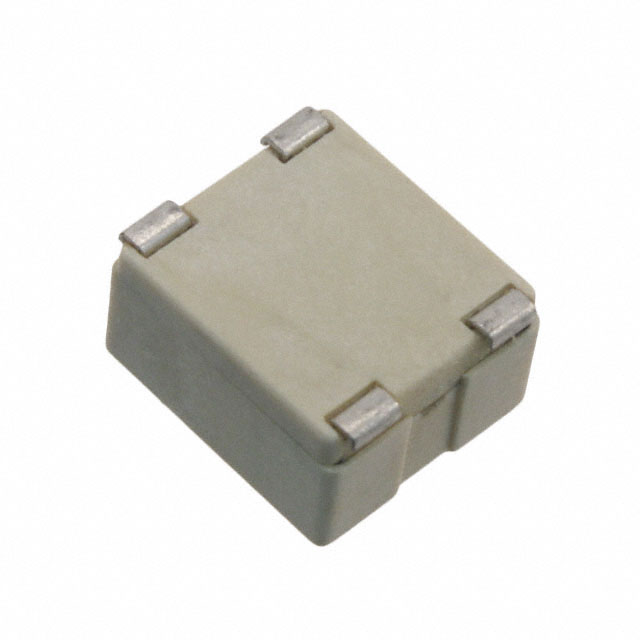

CPFC85NP-WH04
ActiveSumida America Components Inc.
CMC 5.65A 2LN 300 OHM SMD
CPFC85NP-WH04
ActiveSumida America Components Inc.
CMC 5.65A 2LN 300 OHM SMD
Description
General part information
CPFC85NP-WH04
2 Line Common Mode Choke Surface Mount 300 Ohms @ 100 MHz 5.65A DCR 20mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | CPFC85NP-WH04 |
|---|---|
| Current Rating (Max) | 5.65 A |
| DC Resistance (DCR) (Max) | 20 mOhm |
| Filter Type | Signal Line |
| Height (Max) | 0.217 in |
| Impedance | 300 Ohms |
| Mounting Type | Surface Mount |
| Number of Lines | 2 |
| Package Name | Horizontal |
| Pad Count | 4 PC Pad |
| Size / Dimension Length | 0.366 in |
| Size / Dimension Width | 0.323 in |
