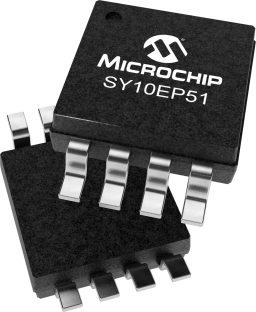

SY10EP51VKG
ActiveFLIP FLOP, D, 370 PS, 3 GHZ, 50 MA, 8 PINS, MSOP
Deep-Dive with AI
Search across all available documentation for this part.
SY10EP51VKG
ActiveFLIP FLOP, D, 370 PS, 3 GHZ, 50 MA, 8 PINS, MSOP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | SY10EP51VKG | SY10EP51 Series |
|---|---|---|
| - | - | |
| Clock Frequency | 3 GHz | 3 GHz |
| Current - Quiescent (Iq) | 40 mA | 40 mA |
| Function | Reset | Reset |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Bits per Element | 1 | 1 |
| Number of Elements | 1 | 1 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Output Type | Complementary | Complementary |
| Package / Case | 8-MSOP, 8-TSSOP | 8-MLF®, 8-VFDFN Exposed Pad, 8-MSOP, 8-TSSOP |
| Package / Case | 3 mm | 3 mm |
| Package / Case [custom] | 0.118 in | 0.118 in |
| Supplier Device Package | 8-MSOP | 8-MLF® (2x2), 8-MSOP |
| Trigger Type | Negative, Positive | Negative, Positive |
| Type | D-Type | D-Type |
| Voltage - Supply [Max] | -5.5 V | -5.5 V |
| Voltage - Supply [Min] | -3 V | -3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 3.77 | |
| 25 | $ 3.14 | |||
| 100 | $ 3.04 | |||
| Microchip Direct | TUBE | 1 | $ 3.77 | |
| 25 | $ 3.14 | |||
| 100 | $ 2.86 | |||
| 1000 | $ 2.76 | |||
| 5000 | $ 2.73 | |||
| 10000 | $ 2.70 | |||
SY10EP51 Series
FLIP FLOP D-MASTER-SLAVE TYPE POS-EDGE/NEG-EDGE 1-ELEMENT 8-PIN DFN EP T/R
| Part | Type | Voltage - Supply [Max] | Voltage - Supply [Min] | Mounting Type | Number of Bits per Element | Output Type | Clock Frequency | Operating Temperature [Max] | Operating Temperature [Min] | Function | Trigger Type | Package / Case | Supplier Device Package | Current - Quiescent (Iq) | Number of Elements | Package / Case [custom] | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology SY10EP51VMG-TR | D-Type | -5.5 V | -3 V | Surface Mount | 1 | Complementary | 3 GHz | 85 °C | -40 °C | Reset | Negative, Positive | 8-MLF®, 8-VFDFN Exposed Pad | 8-MLF® (2x2) | 40 mA | 1 | ||
Microchip Technology SY10EP51VKG | |||||||||||||||||
Microchip Technology SY10EP51VKG | D-Type | -5.5 V | -3 V | Surface Mount | 1 | Complementary | 3 GHz | 85 °C | -40 °C | Reset | Negative, Positive | 8-MSOP, 8-TSSOP | 8-MSOP | 40 mA | 1 | 0.118 in | 3 mm |
Microchip Technology SY10EP51VKG-TR | D-Type | -5.5 V | -3 V | Surface Mount | 1 | Complementary | 3 GHz | 85 °C | -40 °C | Reset | Negative, Positive | 8-MSOP, 8-TSSOP | 8-MSOP | 40 mA | 1 | 0.118 in | 3 mm |
Microchip Technology SY10EP51VMG-TR |
Description
General part information
SY10EP51 Series
The SY10EP51V is a D flip-flop with reset and differential clock. The device is pin and functionally equivalent to the EL51 device.The reset input is an asynchronous, level triggered signal. Data enters the master portion of the flip-flop when CLK is LOW and is transferred to the slave, and thus the outputs, upon a positive transition of the CLK. The differential clock inputs of the EP51V allow the device to be used as a negative edge triggered flip-flop.The differential input employs clamp circuitry to maintain stability under open input conditions. When left open, the CLK input will be pulled down to VEE and the /CLK input will be biased a VCC/2.
