Description
General part information
KBU1510

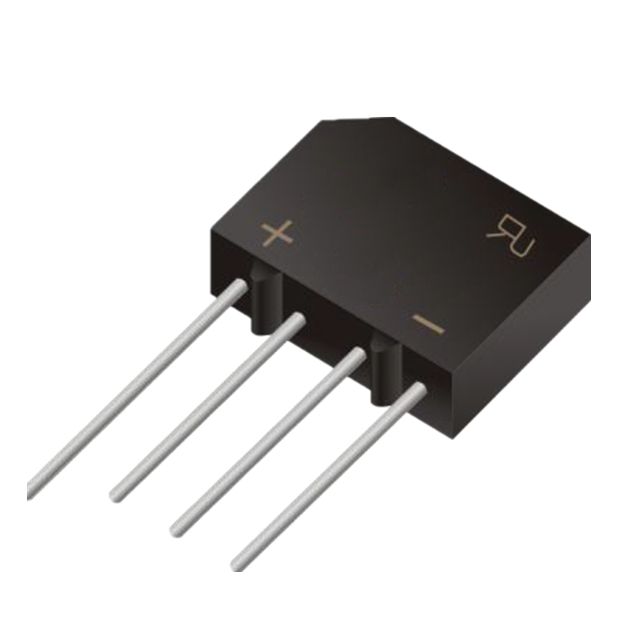

Bridge Rectifier Single Phase Standard 1 kV Through Hole KBU
Technical Specifications
Parameters and characteristics for this part
| Specification | KBU1510 |
|---|---|
| Current - Average Rectified (Io) | 15 A |
| Current - Reverse Leakage | 10 µA |
| Diode Type | Single Phase |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 4-SIP, KBU, KBL |
| Package Name | KBU |
| Technology | Standard |
| Voltage - Forward (Vf) (Max) | 1 V |
| Voltage - Peak Reverse (Max) | 1000 V |
